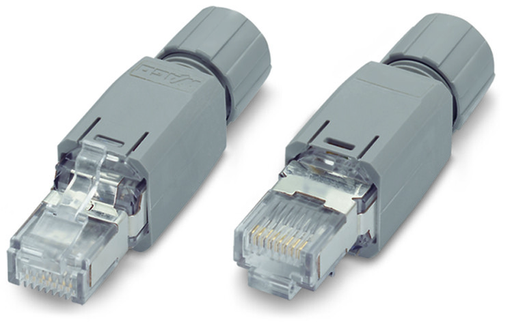

Features

Approvals

• Det Norske Veritas, Germanischer Lloyd, DNV GL, TAA0000194
• American Bureau of Shipping, ABS, 19-HG1821926
• Polski Rejestr Statków, PRS, TE/2236/880590/19
• Underwriters Laboratories Inc., UL, E345416, UL 1977
• RINA Germany GmbH, RINA, ELE066419XG
• Lloyds Register EMEA, LR, 02/20026 (E6)

Specifications

Technical Data

• Connection type: RJ-45 plug
• Pole No.: 8
• Cable connection direction to mating direction: 0 °
• Communication/fieldbus: PROFINET
• Code: PROFINET
• Insulation resistance: (100 V) > 1 GΩ
• Contact resistance: (Wire – IDC) < 1 mΩ; (Strand – IDC) < 5 mΩ

Connection Data

• Connection type (1): IDC contact
• Solid conductor: 0.13 … 0.24 mm² / 26/1 … 23/1 AWG
• Stranded conductor 2: 0.14 … 0.36 mm² / 26/7 … 22/7 AWG

Physical Data

• Width: 14 mm
• Height: 14 mm
• Depth: 59 mm

Mechanical Data

• Shield: Brass (CuZn); hot-dip tinned 3 μm; Shield contact: large surface >180°
• Connection requirement (permissible cable type): Cat. 5e
• Connectable sheathed cable diameter: 4.5 … 8 mm
• Housing material: Plastic
• Contact material: Bronze (CuSn6)
• Contact plating: > 1.2 µm gold over 1.2 µm nickel
• Mating cycles (max.): 1000
• Weight: 13.400 g

Environmental Requirements

• Surrounding air temperature (operation): -20 … 70 °C
• Surrounding air temperature (storage): -40 … 85 °C
• Protection type: IP20
• Relative humidity (without condensation): 95 %
• Vibration resistance: 4g per IEC 60068-2-6
• Fire load: 0.000 MJ
• Standards/Specifications: Basic standard: IEC 60603-7 RJ-45 Category 5 || CD ISO/IEC 11801: 2002 || EN 50173: 2002

Commercial Data

• Packaging type: Box
• Country of origin Sales Organisation Germany: CH
• GTIN: 4045454988173
• Customs tariff number Sales Organisation Germany: 85366990990
