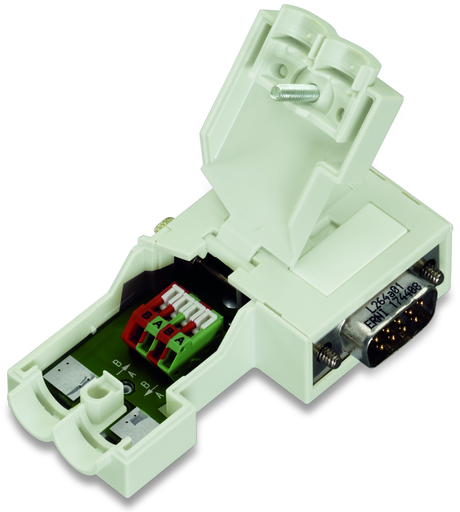

Features

• Compact design Perfectly connects to an S7 PLC
• No losable parts
• Two horizontal cable entries for both input and output.
• Fast and maintenance-free CAGE CLAMP® connection – a locking slide keeps the clampling unit in its open position
• Externally operable switch to activate or deactivate the network terminating resistor

Specifications

Technical Data

• Connection type: D-sub 9 plug
• Pole No.: 9
• Communication/fieldbus: PROFIBUS
• Baud rate: 12 Mbit/s (per PROFIBUS specification)
• Supply voltage: 4.75 … 5.25 VDC
• Input current: 5 mA

Connection Data

• Connection type (1): CAGE CLAMP® terminal strip with locking slide (218 Series)
• Solid conductor: 0.08 … 0.5 mm² / 28 … 20 AWG
• Strip length: 5 … 6 mm / 0.2 … 0.24 inch

Physical Data

• Width: 43.6 mm / 1.717 inch
• Height: 16.2 mm / 0.638 inch
• Depth: 72.8 mm / 2.866 inch

Mechanical Data

• Connectable sheathed cable diameter: 8.5 mm
• Cable glands (number): 2
• Housing material: PC-V0
• Weight: 45.000 g
• Color: Light gray

Environmental Requirements

• Surrounding air temperature (operation): 0 … 60 °C
• Surrounding air temperature (storage): -25 … 85 °C
• Protection type: IP20
• Relative humidity (without condensation): 95 %
• Fire load: 0.000 MJ

Commercial Data

• Packaging type: Box
• Country of origin Sales Organisation Germany: DE
• GTIN: 4045454633875
• Customs tariff number Sales Organisation Germany: 85366990990
