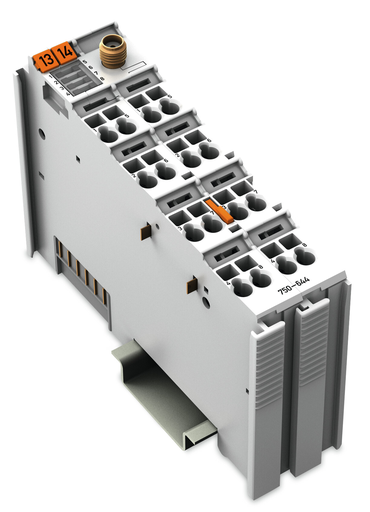

Features

Approvals

• TÜV Rheinland do Brasil Ltda., INMETRO, BR-Ex_TÜV 12.1297 X, IEC 60079
• CQST/CNEx, CCCEx, 2020312310000215, CNCA-C23-01
• UL International Netherlands B.V., UL, E175199 Sec.1, UL 508
• TUEV Nord Cert GmbH, IECEx, IECEx TUN 09.0001 X, IEC 60079-0
• Brjansker Zertifizierungsstelle, EAC, EAC RU C-DE.AM02.B.00163/19, TP TC 012/2011
• Underwriters Laboratories Inc., UL, E198726 Sec.1, UL 121201
• TUEV Nord Cert GmbH, TUEV Nord, TÜV 07 ATEX 554086 X en., EN 60079-0

Specifications

Technical Data

• Device-specific: Operating modes: Communication mode with ad-hoc profile for high connectivity and real-time profile for time-sensitive applications, as well as configuration mode
• Radio technology: Bluetooth® 2.0 + EDR || Bluetooth®
• Frequency band: License-free, ISM band, 2402 … 2480 MHz
• Topology: Piconet (1 master, max. 7 slaves)
• Coexistence: AFH and adaptive transmission power
• Transmission range: 1000 m (max.) in an open space, 100 m in buildings (using an external WAGO Antenna, Item No. 758-912)
• Power consumption (typ.): 8 mA (Bluetooth®); max. 35 mA
• Receiver sensitivity: -94 dBm
• Profiles: SPP, PAN
• Data width: 12, 24, 48 bytes configurable; incl. 1 byte control/status
• Power supply: Bluetooth®: 24 VDC, via power jumper contacts
• Advanced diagnostics: Via visual indicator and process image: device status, connection status (radio connection quality, signal strength, interference), only via process image: time monitoring
• Supply voltage (system): 5 VDC; via data contacts
• Power consumption (5 V system supply): 20 mA
• Supply voltage (field): 24 VDC; via power jumper contacts (power supply via blade contact; transmission via spring contact)
• Isolation: 500 V antenna/system
• Number of incoming power jumper contacts: 2
• Number of outgoing power jumper contacts: 2

Connection Data

• Connection technology: antenna: 1 x SMA socket

Physical Data

• Width: 24 mm / 0.945 inch
• Height: 72 mm / 2.835 inch
• Height from upper-edge of DIN-rail: 64.8 mm / 2.551 inch
• Depth: 100 mm / 3.937 inch

Mechanical Data

• Mounting type: DIN-35 rail

Material Data

• Color: Light gray
• Housing material: Polycarbonate; polyamide 6.6
• Fire load: 0.000 MJ
• Weight: 91.000 g
• Conformity marking: CE

Environmental Requirements

• Surrounding air temperature (operation): 0 … 55 °C
• Surrounding air temperature (storage): -25 … 85 °C
• Protection type: IP20
• Pollution degree (5): 2 per IEC 61131-2
• Operating altitude: Without temperature derating: 0 … 2000 m; with temperature derating: 2000 … 5000 m (0.5 K/100 m); 5000 m (max.)
• Mounting position: Any
• Relative humidity (without condensation): 95 %
• Vibration resistance: Per IEC 60068-2-6
• Shock resistance: 15g per IEC 60068-2-27
• EMC immunity to interference: Per EN 61000-6-2, EN 61131-2
• EMC emission of interference: Per EN 61000-6-3, EN 61131-2
• Exposure to pollutants: Per IEC 60068-2-42 and IEC 60068-2-43
• Permissible H2S contaminant concentration at a relative humidity 75 %: 10 ppm
• Permissible SO2 contaminant concentration at a relative humidity 75 %: 25 ppm

Commercial Data

• Packaging type: Box
• Country of origin Sales Organisation Germany: DE
• GTIN: 4045454549008
• Customs tariff number Sales Organisation Germany: 85389099990
