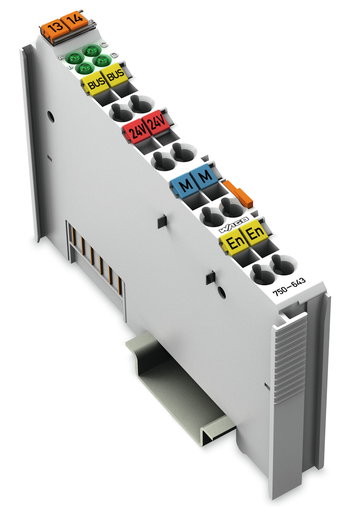

WAGO 750-643

750-643 WAGO 750-643

WAGO 750-643
Part # 750-643
Manufacturer WAGO
GTIN 4045454394011
Condition New
Price: $ 420.32

Please Contact Us for Stock Availability

Qty
Order by 3PM MST (subject to stock availability) same day shipping available!
MP-BUS MASTER
Got questions? Send us a message or call us at 1-800-335-5111 for additional assistance.
Mp-bus (multi point-bus) master module I/O module for testing

Features

Approvals

  • UL International Netherlands B.V., UL, E175199 Sec.1, UL 508
  • Brjansker Zertifizierungsstelle, EAC, EAC RU C-DE.AM02.B.00163/19, TP TC 012/2011
  • National Radio Research Agency, KC, MSIP-REM-W43-MSM750, Article 58-2, Clause 3
  • TÜV Rheinland do Brasil Ltda., INMETRO, BR-Ex_TÜV 12.1297 X, IEC 60079
  • Underwriters Laboratories Inc., UL, E198726 Sec.1, UL 121201
  • TUEV Nord Cert GmbH, IECEx, IECEx TUN 09.0001 X, IEC 60079-0
  • CQST/CNEx, CCCEx, 2020312310000215, CNCA-C23-01
  • TUEV Nord Cert GmbH, TUEV Nord, TÜV 07 ATEX 554086 X en., EN 60079-0

Specifications

Technical Data

  • Device specification: MP-Bus Specification: PP/MP Specification V1.21 from Belimo (Valid since 1.10.2002)
  • Topology: Number of participants: 8 slaves (max.)
  • Power consumption (typ.): 25 mA (MP-Bus)
  • Data width: 1-byte C/S, 7-byte data
  • Power supply: MP-Bus: 24 VDC, via power jumper contacts
  • Supply voltage (system): 5 VDC; via data contacts
  • Power consumption (5 V system supply): 15 mA
  • Supply voltage (field): 24 VDC; via power jumper contacts (power supply via blade contact; transmission via spring contact)
  • Isolation: 500 V (rms) MP-Bus/system
  • Number of incoming power jumper contacts: 2
  • Number of outgoing power jumper contacts: 2

Connection Data

  • Connection technology: inputs/outputs: 8 x CAGE CLAMP®
  • Connection type (1): Inputs/outputs
  • Solid conductor: 0.08 … 2.5 mm² / 28 … 14 AWG
  • Fine-stranded conductor: 0.08 … 2.5 mm² / 28 … 14 AWG
  • Strip length: 8 … 9 mm / 0.31 … 0.35 inch

Physical Data

  • Width: 12 mm / 0.472 inch
  • Height: 100 mm / 3.937 inch
  • Depth: 69.8 mm / 2.748 inch
  • Depth from upper edge of DIN-rail: 62.6 mm / 2.465 inch

Mechanical Data

  • Mounting type: DIN-35 rail

Material Data

  • Color: Light gray
  • Housing material: Polycarbonate; polyamide 6.6
  • Fire load: 0.954 MJ
  • Weight: 50.474 g
  • Conformity marking: CE

Environmental Requirements

  • Surrounding air temperature (operation): 0 … 55 °C
  • Surrounding air temperature (storage): -25 … 85 °C
  • Protection type: IP20
  • Pollution degree (5): 2 per IEC 61131-2
  • Operating altitude: 0 … 2000 m
  • Mounting position: Horizontal (standing/lying); vertical
  • Relative humidity (without condensation): 95 %
  • Vibration resistance: Per IEC 60068-2-6
  • Shock resistance: 15g per IEC 60068-2-27
  • EMC immunity to interference: Per EN 61000-6-2
  • EMC emission of interference: Per EN 61000-6-3
  • Exposure to pollutants: Per IEC 60068-2-42 and IEC 60068-2-43
  • Permissible H2S contaminant concentration at a relative humidity 75 %: 10 ppm
  • Permissible SO2 contaminant concentration at a relative humidity 75 %: 25 ppm

Commercial Data

  • Packaging type: Box
  • Country of origin Sales Organisation Germany: DE
  • GTIN: 4045454394011
  • Customs tariff number Sales Organisation Germany: 85389099990
: *
: *
: *
