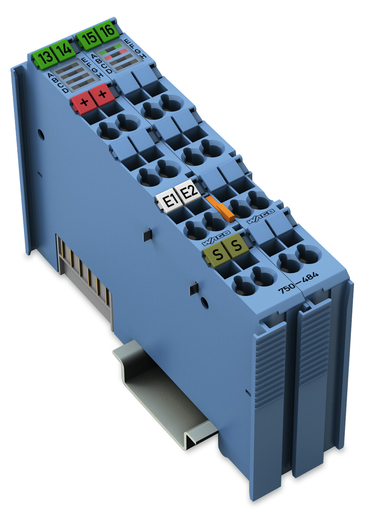

Features

Approvals

• TUEV Nord Cert GmbH, IECEx, IECEx TUN 09.0001 X, IEC 60079-0
• UL International Netherlands B.V., UL, E175199 Sec.1, UL 508
• Bureau Veritas S.A., BV, 30389/B0 BV
• Brjansker Zertifizierungsstelle, EAC, EAC RU C-DE.AM02.B.00163/19, TP TC 012/2011
• Polski Rejestr Statków, PRS, TE/2236/880590/19
• Korean Register of Shipping, KR, KR HMB05880-AC001
• Det Norske Veritas, Germanischer Lloyd, DNV GL, TAA0000194
• UL International Germany GmbH, AEx, E480271, UL 60079
• TUEV Nord Cert GmbH, TUEV Nord, IECEx TUN 12.0039X, IEC 60079
• American Bureau of Shipping, ABS, 19-HG1821926
• RINA Germany GmbH, RINA, ELE066419XG
• National Radio Research Agency, KC, MSIP-REM-W43-AIM750, Article 58-2, Clause 3
• Lloyds Register EMEA, LR, 02/20026 (E6)
• Underwriters Laboratories Inc., UL, E198726 Sec.1, UL 121201
• Nippon Kaiji Kyokai, NK, TA17255M
• CQST/CNEx, CCCEx, 2020312310000211, CNCA-C23-01
• TUEV Nord Cert GmbH, ATEX, TUEV_12_ATEX_106032X, EN 60079-0
• TÜV Rheinland do Brasil Ltda., INMETRO, TÜV_14.1911_X

Specifications

Notes

• Note: The analog output module must only be operated via 24 VDC Ex i!General information (e.g., installation regulations) on explosion protection is available in the WAGO I/O System 750 manuals!

Technical Data

• Number of analog inputs: 2
• Total number of channels (module): 2
• Signal type: Current
• Signal type (current): 4 … 20 mADC
• Supply voltage (sensor): 16.5 VDC; Transmitter supply UV at 20 mA
• Sensor connection: 2 x (2-wire)
• Input filter: Parameterizable
• Input filter: parametrizable (channel by channel): Yes
• Signal characteristic: Single-ended
• Diagnostics: Wire break, measurement range overflow
• Resolution [bit]: 12 bits
• Power consumption Pmax.: 1.60 W (with slaves (20 mA))
• Data width: 2 x 2-byte data; 2 x 2-byte data + 2n x 4-byte data (n = number of dynamic variables); 2 x 2-byte data + 6-byte mailbox
• Overvoltage protection: 30 V, reverse polarity protected
• Conversion time (typ.): 10 ms
• Measurement error (reference temperature): 25 °C
• Measurement error – deviation (max.) from the upper-range value: 0.2 %
• Temperature error (max.) of the upper-range value: 0.01 %/K
• Intrinsic safety Ex i: Yes
• Supply voltage (system): 5 VDC; via data contacts
• Power consumption (5 V system supply): 25 mA
• Supply voltage (field): 24 VDC; (Ex i power supply: UO = max. 27.3 V); via power jumper contacts (power supply via blade contact; transmission via spring contact)
• Power consumption, field supply (module with no external load): 26 mA
• HART devices per channel: One device (single-drop, no multi-drop)
• HART modems per channel: One modem (no multiplex)
• Power loss Pl: 0.62 W (without slaves)
• Isolation: 300 VAC system/field
• Number of incoming power jumper contacts: 2
• Number of outgoing power jumper contacts: 2
• Current carrying capacity (power jumper contacts): 1 A
• Marking: ATEX, IECEx, INMETRO, Underwriters Laboratories Inc.

Explosion Protection

• Ex guideline: EN IEC 60079-0, -7, -11
• Safety-relevant data (circuit): Uo = 27.3 V; Io = 92.7 mA; Po = 630 mW; Linear characteristic curve
• Reactances Ex ia IIC: Lo = 1.5 mH; Co = 87 nF
• Reactances Ex ia IIB: Lo = 15 mH; Co = 670 nF
• Reactances Ex ia IIA: Lo = 38 mH; Co = 2.2 μF
• Reactances Ex ia I: Lo = 36 mH; Co = 3.49 µF
• Reactances (note): Reactances without accounting for the concurrence of L and C

Connection Data

• Connection technology: inputs/outputs: 16 x CAGE CLAMP®
• Connection type (1): Inputs/outputs
• Solid conductor: 0.08 … 2.5 mm² / 28 … 14 AWG
• Fine-stranded conductor: 0.08 … 2.5 mm² / 28 … 14 AWG
• Strip length: 8 … 9 mm / 0.31 … 0.35 inch

Physical Data

• Width: 24 mm / 0.945 inch
• Height: 100 mm / 3.937 inch
• Depth: 67.8 mm / 2.669 inch
• Depth from upper edge of DIN-rail: 60.6 mm / 2.386 inch

Mechanical Data

• Mounting type: DIN-35 rail

Material Data

• Color: Blue
• Housing material: Polycarbonate; polyamide 6.6
• Fire load: 1.682 MJ
• Weight: 92.000 g
• Conformity marking: CE

Environmental Requirements

• Surrounding air temperature (operation): 0 … 55 °C
• Surrounding air temperature (storage): -40 … 85 °C
• Protection type: IP20
• Pollution degree (5): 2 per IEC 61131-2
• Operating altitude: 0 … 2000 m
• Mounting position: Horizontal (standing/lying); vertical
• Relative humidity (without condensation): 95 %
• Vibration resistance: 4g per IEC 60068-2-6
• Shock resistance: 15g per IEC 60068-2-27
• EMC immunity to interference: Per EN 61000-6-2, marine applications
• EMC emission of interference: Per EN 61000-6-3, marine applications
• Exposure to pollutants: Per IEC 60068-2-42 and IEC 60068-2-43
• Permissible H2S contaminant concentration at a relative humidity 75 %: 10 ppm
• Permissible SO2 contaminant concentration at a relative humidity 75 %: 25 ppm

Commercial Data

• Packaging type: Box
• Country of origin Sales Organisation Germany: DE
• GTIN: 4017332317603
• Customs tariff number Sales Organisation Germany: 85389099990
