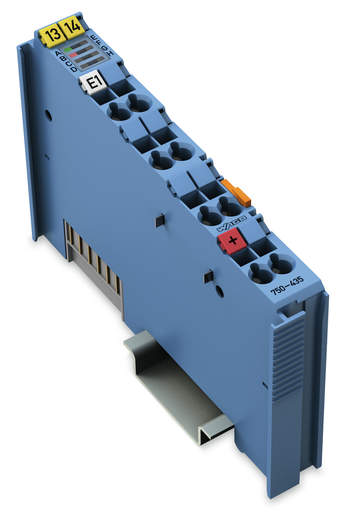

Features

• Green LED (signal on)
• Red LED (short circuit, wire breakage)

Approvals

• TÜV Rheinland do Brasil Ltda., INMETRO, TÜV_14.1911_X
• CQST/CNEx, CCCEx, 2020312310000211, CNCA-C23-01
• TUEV Nord Cert GmbH, IECEx, IECEx TUN 09.0001 X, IEC 60079-0
• Polski Rejestr Statków, PRS, TE/2236/880590/19
• Korean Register of Shipping, KR, KR HMB05880-AC001
• Bureau Veritas S.A., BV, 13453/DO BV
• UL International Netherlands B.V., UL, E175199 Sec.1, UL 508
• TUEV Nord Cert GmbH, ATEX, TUEV_12_ATEX_106032X, EN 60079-0
• Det Norske Veritas, Germanischer Lloyd, DNV GL, TAA0000194
• American Bureau of Shipping, ABS, 19-HG1821926
• Underwriters Laboratories Inc., UL, E198726 Sec.1, UL 121201
• Brjansker Zertifizierungsstelle, EAC, EAC RU C-DE.AM02.B.00163/19, TP TC 012/2011
• Lloyds Register EMEA, LR, 02/20026 (E6)
• National Radio Research Agency, KC, MSIP-REM-W43-DIM750, Article 58-2, Clause 3
• UL International Germany GmbH, AEx, E480271, UL 60079
• Nippon Kaiji Kyokai, NK, TA17255M
• RINA Germany GmbH, RINA, ELE066419XG
• TUEV Nord Cert GmbH, TUEV Nord, IECEx TUN 12.0039X, IEC 60079

Specifications

Notes

• Note: The digital input module must only be operated with a 24 VDC Ex i power supply!General information (e.g., installation regulations) on explosion protection is available in the WAGO I/O System 750 manuals!

Technical Data

• Number of digital inputs: 1
• Total number of channels (module): 1
• Signal type: NAMUR
• Supply voltage (sensor): 8.2 VDC; Short-circuit-protected, isolated channels
• Sensor connection: 1 x (2-wire)
• Input characteristic: High-side switching
• Input filter (digital): 3 ms
• Protection against incorrect wiring: Short circuit monitoring: > 6.4 mA || Wire break monitoring: < 0.2 mA
• Open-circuit voltage: 8.2 V
• Short-circuit current: ≤ 8.2 mA
• Signal current (0) NAMUR: 1.2 mA
• Signal current (1) NAMUR: 2.1 mA
• Switching hysteresis: 0.2 mA
• Diagnostics: Short circuit, wire break
• Contact resistance (max.): 1000 Ω
• Input pulse length: 5 ms
• Input pulse separation: 3 ms
• Power consumption Pmax.: 0.5 W
• Input data width (internal) (max.): 2 bits
• Data width: 2-bit input: 1-bit status, 1-bit error (short circuit/wire break)
• Intrinsic safety Ex i: Yes
• Supply voltage (system): 5 VDC; via data contacts
• Power consumption (5 V system supply): 2.5 mA
• Supply voltage (field): 24 VDC; (Ex i power supply: UO = max. 27.3 V); via power jumper contacts (power supply via blade contact; transmission via spring contact)
• Power consumption, field supply (module with no external load): 13 mA
• Power loss Pl: 0.37 W
• Isolation: 300 VAC system/field
• Number of incoming power jumper contacts: 2
• Number of outgoing power jumper contacts: 2
• Current carrying capacity (power jumper contacts): 1 A
• Marking: ATEX/IECEx: II 3 (1) G Ex ec [ia Ga] IIC T4 Gc; II (1) D [Ex ia Da] IIIC; I (M1) [Ex ia Ma] I

Explosion Protection

• Ex guideline: EN IEC 60079-0, -7, -11
• Safety-relevant data (circuit): Uo = 12 V; Io = 16 mA; Po = 48 mW; Linear characteristic curve
• Reactances Ex ia IIC: Lo = 180 mH; Co = 1.4 µF
• Reactances Ex ia IIB: Lo = 560 mH; Co = 9 µF
• Reactances Ex ia IIA: Lo = 900 mH; Co = 36 μF
• Reactances Ex ia I: Lo = 1 H; Co = 38 µF
• Reactances (note): Reactances without accounting for the concurrence of L and C

Connection Data

• Connection technology: inputs/outputs: 8 x CAGE CLAMP®
• Connection type (1): Inputs/outputs
• Solid conductor: 0.08 … 2.5 mm² / 28 … 14 AWG
• Fine-stranded conductor: 0.08 … 2.5 mm² / 28 … 14 AWG
• Strip length: 8 … 9 mm / 0.31 … 0.35 inch

Physical Data

• Width: 12 mm / 0.472 inch
• Height: 100 mm / 3.937 inch
• Depth: 67.8 mm / 2.669 inch
• Depth from upper edge of DIN-rail: 60.6 mm / 2.386 inch

Mechanical Data

• Mounting type: DIN-35 rail

Material Data

• Color: Blue
• Housing material: Polycarbonate; polyamide 6.6
• Fire load: 0.874 MJ
• Weight: 46.000 g
• Conformity marking: CE

Environmental Requirements

• Surrounding air temperature (operation): 0 … 55 °C
• Surrounding air temperature (storage): -40 … 85 °C
• Protection type: IP20
• Pollution degree (5): 2 per IEC 61131-2
• Operating altitude: 0 … 2000 m
• Mounting position: Horizontal (standing/lying); vertical
• Relative humidity (without condensation): 95 %
• Vibration resistance: 4g per IEC 60068-2-6
• Shock resistance: 15g per IEC 60068-2-27
• EMC immunity to interference: Per EN 61000-6-2, marine applications
• EMC emission of interference: Per EN 61000-6-3, marine applications
• Exposure to pollutants: Per IEC 60068-2-42 and IEC 60068-2-43
• Permissible H2S contaminant concentration at a relative humidity 75 %: 10 ppm
• Permissible SO2 contaminant concentration at a relative humidity 75 %: 25 ppm

Commercial Data

• Packaging type: Box
• Country of origin Sales Organisation Germany: DE
• GTIN: 4045454725532
• Customs tariff number Sales Organisation Germany: 85389099990
