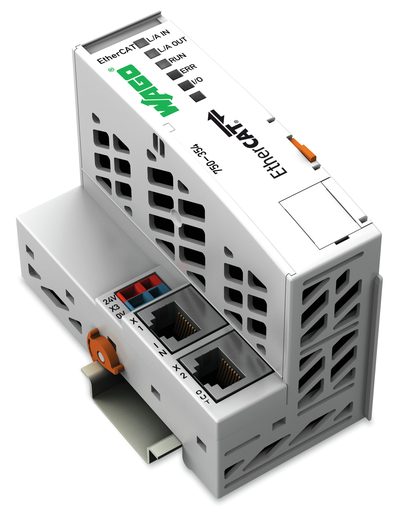

WAGO 750-354

750-354 WAGO 750-354

WAGO 750-354
Part # 750-354
Manufacturer WAGO
GTIN 4050821086819
Condition New
Price: $ 375.73

Please Contact Us for Stock Availability

Qty
Order by 3PM MST (subject to stock availability) same day shipping available!
EtherCAT BUSCOUPLER
Got questions? Send us a message or call us at 1-800-335-5111 for additional assistance.
EtherCAT BUSCOUPLER

Features

Approvals

  • TÜV Rheinland do Brasil Ltda., INMETRO, BR-Ex_TÜV 12.1297 X, IEC 60079
  • Brjansker Zertifizierungsstelle, EAC, EAC RU C-DE.AM02.B.00163/19, TP TC 012/2011
  • CQST/CNEx, CCCEx, 2020312310000215, CNCA-C23-01
  • TUEV Nord Cert GmbH, TUEV Nord, TÜV 07 ATEX 554086 X en., EN 60079-0
  • National Radio Research Agency, KC, MSIP-REM-W43-FBC750, Article 58-2, Clause 3
  • TUEV Nord Cert GmbH, IECEx, IECEx TUN 09.0001 X, IEC 60079-0
  • UL International Netherlands B.V., UL, E175199 Sec.1, UL 508
  • Underwriters Laboratories Inc., UL, E198726 Sec.1, UL 121201

Specifications

Technical Data

  • Communication: EtherCAT
  • Baud rate: 100 Mbit/s
  • Transmission medium: Shielded twisted pair S/FTP, F/FTP or SF/FTP; 100 Ω; Cat. 6
  • Transmission performance: Class D per EN 50173
  • Number of modules per node (max.): 64
  • Input and output (fieldbus) process image (max.): 1024 Byte/1024 Byte
  • Supply voltage (system): 24 VDC (-25 … +30 %); via pluggable connector
  • Power consumption (5 V system supply): 300 mA
  • Total current (system supply): 700 mA
  • Input current (typ.) at nominal load (24 V): 250 mA
  • Power supply efficiency (typ.) at nominal load (24 V): 85 %
  • Isolation: 500 V system/field

Connection Data

  • Connection technology: communication/fieldbus: EtherCAT: 2 x RJ-45
  • Connection technology: system supply: 2 x CAGE CLAMP®
  • Connection technology: device configuration: 1 x Male connector; 4-pole
  • Connection type (1): System supply
  • Solid conductor: 0.08 … 1.5 mm² / 28 … 14 AWG
  • Fine-stranded conductor: 0.08 … 1.5 mm² / 28 … 14 AWG
  • Strip length: 5 … 6 mm / 0.2 … 0.24 inch
  • Note (conductor cross-section): 14 AWG: THHN, THWN

Physical Data

  • Width: 49.5 mm / 1.949 inch
  • Height: 96.8 mm / 3.811 inch
  • Depth: 71.9 mm / 2.831 inch
  • Depth from upper edge of DIN-rail: 64.7 mm / 2.547 inch

Mechanical Data

  • Mounting type: DIN-35 rail

Material Data

  • Color: Light gray
  • Housing material: Polycarbonate; polyamide 6.6
  • Fire load: 1.390 MJ
  • Weight: 102.880 g
  • Conformity marking: CE

Environmental Requirements

  • Surrounding air temperature (operation): 0 … 55 °C
  • Surrounding air temperature (storage): -40 … 85 °C
  • Protection type: IP20
  • Pollution degree (5): 2 per IEC 61131-2
  • Operating altitude: 0 … 2000 m
  • Mounting position: Horizontal (standing/lying); vertical
  • Relative humidity (without condensation): 95 %
  • Vibration resistance: Per IEC 60068-2-6
  • Shock resistance: 15g per IEC 60068-2-27
  • EMC immunity to interference: Per EN 61000-6-2
  • EMC emission of interference: Per EN 61000-6-3
  • Exposure to pollutants: Per IEC 60068-2-42 and IEC 60068-2-43
  • Permissible H2S contaminant concentration at a relative humidity 75 %: 10 ppm
  • Permissible SO2 contaminant concentration at a relative humidity 75 %: 25 ppm

Commercial Data

  • Packaging type: Box
  • Country of origin Sales Organisation Germany: DE
  • GTIN: 4050821086819
  • Customs tariff number Sales Organisation Germany: 85176200000
: *
: *
: *
