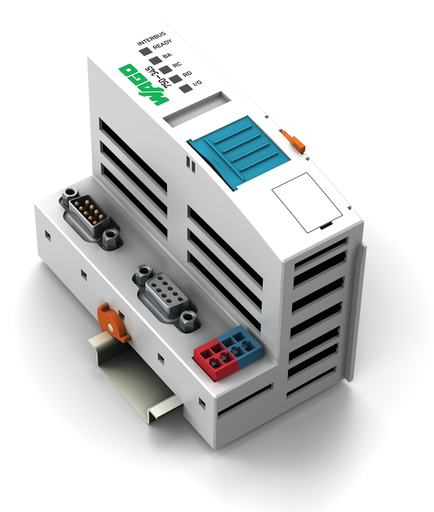

Features

Approvals

• TUEV Nord Cert GmbH, IECEx, IECEx TUN 09.0001 X, IEC 60079-0
• Underwriters Laboratories Inc., UL, E198726 Sec.1, UL 121201
• Brjansker Zertifizierungsstelle, EAC, EAC RU C-DE.AM02.B.00163/19, TP TC 012/2011
• TÜV Rheinland do Brasil Ltda., INMETRO, BR-Ex_TÜV 12.1297 X, IEC 60079
• UL International Netherlands B.V., UL, E175199 Sec.1, UL 508
• TUEV Nord Cert GmbH, TUEV Nord, TÜV 07 ATEX 554086 X en., EN 60079-0
• CQST/CNEx, CCCEx, 2020312310000215, CNCA-C23-01

Specifications

Technical Data

• Communication: INTERBUS
• Number of fieldbus nodes on master (max.): 256
• Number of I/O points: 4096
• Baud rate: 2 MBd
• Bus segment length (max.): 150 m
• Transmission medium: Certified Cu cable
• Number of modules per node (max.): 64
• Input and output (fieldbus) process image (max.): 20 Byte/20 Byte
• Supply voltage (system): 24 VDC (-15 … +20 %); via pluggable connector
• Power consumption (5 V system supply): 350 mA
• Total current (system supply): 650 mA
• Input current (typ.) at nominal load (24 V): 260 mA
• Power supply efficiency (typ.) at nominal load (24 V): 80 %
• Standard: EN 50254

Connection Data

• Connection technology: communication/fieldbus: INTERBUS: 1 x D-sub 9 plug/socket
• Connection technology: system supply: 4 x CAGE CLAMP®
• Connection technology: device configuration: 1 x Male connector; 4-pole
• Connection type (1): System supply
• Solid conductor: 0.08 … 1.5 mm² / 28 … 16 AWG
• Fine-stranded conductor: 0.08 … 1.5 mm² / 28 … 16 AWG
• Strip length: 5 … 6 mm / 0.2 … 0.24 inch
• Note (conductor cross-section): 14 AWG: THHN, THWN

Physical Data

• Width: 49.5 mm / 1.949 inch
• Height: 71.9 mm / 2.831 inch
• Height from upper-edge of DIN-rail: 64.7 mm / 2.547 inch
• Depth: 96.8 mm / 3.811 inch

Mechanical Data

• Mounting type: DIN-35 rail

Material Data

• Color: Light gray
• Housing material: Polycarbonate; polyamide 6.6
• Fire load: 2.394 MJ
• Weight: 115.000 g
• Conformity marking: CE

Environmental Requirements

• Surrounding air temperature (operation): 0 … 55 °C
• Surrounding air temperature (storage): -25 … 85 °C
• Protection type: IP20
• Pollution degree (5): 2 per IEC 61131-2
• Operating altitude: Without temperature derating: 0 … 2000 m; with temperature derating: 2000 … 5000 m (0.5 K/100 m); 5000 m (max.)
• Mounting position: Any
• Relative humidity (without condensation): 95 %
• Vibration resistance: Per IEC 60068-2-6
• Shock resistance: 15g per IEC 60068-2-27
• EMC immunity to interference: Per EN 61000-6-2
• EMC emission of interference: Per EN 61000-6-4
• Exposure to pollutants: Per IEC 60068-2-42 and IEC 60068-2-43
• Permissible H2S contaminant concentration at a relative humidity 75 %: 10 ppm
• Permissible SO2 contaminant concentration at a relative humidity 75 %: 25 ppm

Commercial Data

• Packaging type: Box
• Country of origin Sales Organisation Germany: DE
• GTIN: 4017332790369
• Customs tariff number Sales Organisation Germany: 85176200000
