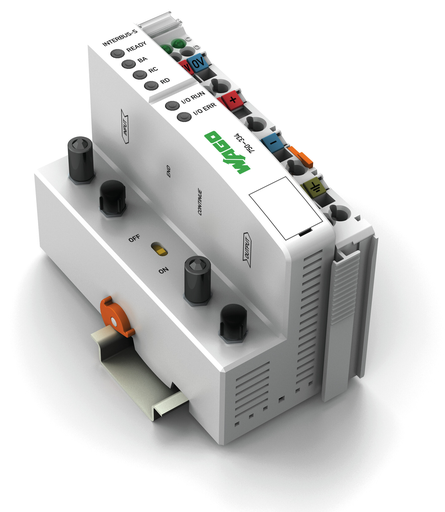

WAGO 750-334

750-334 WAGO 750-334

WAGO 750-334
Part # 750-334
Manufacturer WAGO
GTIN 4045454870133
Condition New
Price: $ 648.96

Please Contact Us for Stock Availability

Qty
Order by 3PM MST (subject to stock availability) same day shipping available!
BUSCOUPLER, INTERBUS-S, FIBER-OPTIC
Got questions? Send us a message or call us at 1-800-335-5111 for additional assistance.
INTERBUS fieldbus coupler digital and analog signals lwl-connection

Features

Approvals

  • TÜV Rheinland do Brasil Ltda., INMETRO, BR-Ex_TÜV 12.1297 X, IEC 60079
  • UL International Netherlands B.V., UL, E175199 Sec.1, UL 508
  • Underwriters Laboratories Inc., UL, E198726 Sec.1, UL 121201

Specifications

Technical Data

  • Communication: INTERBUS
  • Topology: Ring (dual-fiber)
  • Number of fieldbus nodes on master (max.): 256
  • Number of I/O points: 4096
  • Baud rate: 500 kBd
  • Bus segment length (max.): 40 m
  • Transmission medium: APF (All Plastic Fiber) (1000 µm)
  • Number of modules per node (max.): 64
  • Input and output (fieldbus) process image (max.): 64 Byte/64 Byte
  • Supply voltage (system): 24 VDC (-15 … +20 %); via pluggable connector (CAGE CLAMP® connection)
  • Power consumption (5 V system supply): 350 mA
  • Total current (system supply): 1650 mA
  • Supply voltage (field): 24 VDC (-15 … +20 %); via power jumper contacts
  • Input current (typ.) at nominal load (24 V): 500 mA
  • Power supply efficiency (typ.) at nominal load (24 V): 87 %
  • Isolation: 500 V system/field
  • Number of outgoing power jumper contacts: 3
  • Current carrying capacity (power jumper contacts): 10 A
  • Certification: INTERBUS CLUB
  • Standard: EN 50254

Connection Data

  • Connection technology: communication/fieldbus: INTERBUS: 1 x F-SMA
  • Connection technology: field supply: 6 x CAGE CLAMP®
  • Connection technology: system supply: 2 x CAGE CLAMP®
  • Connection technology: device configuration: 1 x Male connector; 4-pole
  • Connection type (1): System/field supply
  • Solid conductor: 0.08 … 2.5 mm² / 28 … 14 AWG
  • Fine-stranded conductor: 0.08 … 2.5 mm² / 28 … 14 AWG
  • Strip length: 8 … 9 mm / 0.31 … 0.35 inch

Physical Data

  • Width: 50.5 mm / 1.988 inch
  • Height: 71.1 mm / 2.799 inch
  • Height from upper-edge of DIN-rail: 63.9 mm / 2.516 inch
  • Depth: 100 mm / 3.937 inch

Mechanical Data

  • Mounting type: DIN-35 rail

Material Data

  • Color: Light gray
  • Housing material: Polycarbonate; polyamide 6.6
  • Fire load: 0.000 MJ
  • Weight: 189.800 g
  • Conformity marking: CE

Environmental Requirements

  • Surrounding air temperature (operation): 0 … 55 °C
  • Surrounding air temperature (storage): -25 … 85 °C
  • Protection type: IP20
  • Pollution degree (5): 2 per IEC 61131-2
  • Operating altitude: Without temperature derating: 0 … 2000 m; with temperature derating: 2000 … 5000 m (0.5 K/100 m); 5000 m (max.)
  • Mounting position: Any
  • Relative humidity (without condensation): 95 %
  • Vibration resistance: Per IEC 60068-2-6
  • Shock resistance: 15g per IEC 60068-2-27
  • EMC immunity to interference: Per EN 61000-6-2
  • EMC emission of interference: Per EN 61000-6-4
  • Exposure to pollutants: Per IEC 60068-2-42 and IEC 60068-2-43
  • Permissible H2S contaminant concentration at a relative humidity 75 %: 10 ppm
  • Permissible SO2 contaminant concentration at a relative humidity 75 %: 25 ppm

Commercial Data

  • Packaging type: Box
  • Country of origin Sales Organisation Germany: DE
  • GTIN: 4045454870133
  • Customs tariff number Sales Organisation Germany: 85176200000
: *
: *
: *
