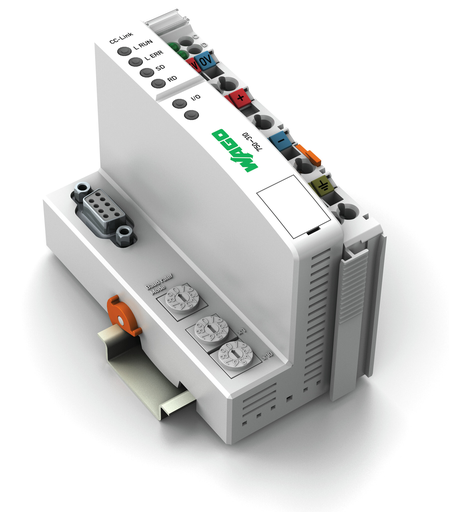

WAGO 750-310

750-310 WAGO 750-310

WAGO 750-310
Part # 750-310
Manufacturer WAGO
GTIN 4045454526771
Condition New
Price: $ 683.75

Please Contact Us for Stock Availability

Qty
Order by 3PM MST (subject to stock availability) same day shipping available!
BUSCOUPLER, C-C LINK
Got questions? Send us a message or call us at 1-800-335-5111 for additional assistance.
CC-Link fieldbus coupler 156 kbaud - 10 mbaud digital and analog signals

Features

Approvals

  • Underwriters Laboratories Inc., UL, E198726 Sec.1, UL 121201
  • Brjansker Zertifizierungsstelle, EAC, EAC RU C-DE.AM02.B.00163/19, TP TC 012/2011
  • TÜV Rheinland do Brasil Ltda., INMETRO, BR-Ex_TÜV 12.1297 X, IEC 60079
  • CQST/CNEx, CCCEx, 2020312310000215, CNCA-C23-01
  • TUEV Nord Cert GmbH, TUEV Nord, TÜV 07 ATEX 554086 X en., EN 60079-0
  • UL International Netherlands B.V., UL, E175199 Sec.1, UL 508
  • National Radio Research Agency, KC, MSIP-REM-W43-FBC750, Article 58-2, Clause 3
  • TUEV Nord Cert GmbH, IECEx, IECEx TUN 09.0001 X, IEC 60079-0

Specifications

Technical Data

  • Communication: CC-Link
  • Number of fieldbus nodes on master (max.): 64
  • Baud rate: 156 kBd … 10 MBd
  • Bus segment length (max.): 1200 m
  • Transmission medium: Shielded Cu cable 2 / 3 x 0.5 mm²
  • Station addresses: 4/1 … 4
  • Number of modules per node (max.): 64
  • Input and output (fieldbus) process image (max.): 48 Byte/48 Byte
  • Input process image note: 14-byte digital, 2-byte system, 32-byte analog
  • Output process image note: 14-byte digital, 2-byte system, 32-byte analog
  • Supply voltage (system): 24 VDC (-25 … +30 %); via pluggable connector (CAGE CLAMP® connection)
  • Power consumption (5 V system supply): 300 mA
  • Total current (system supply): 1700 mA
  • Supply voltage (field): 24 VDC (-25 … +30 %); via power jumper contacts
  • Input current (typ.) at nominal load (24 V): 500 mA
  • Power supply efficiency (typ.) at nominal load (24 V): 87 %
  • Isolation: 500 V system/field
  • Number of outgoing power jumper contacts: 3
  • Current carrying capacity (power jumper contacts): 10 A

Connection Data

  • Connection technology: communication/fieldbus: CC-Link: 1 x D-sub 9 socket
  • Connection technology: field supply: 6 x CAGE CLAMP®
  • Connection technology: system supply: 2 x CAGE CLAMP®
  • Connection technology: device configuration: 1 x Male connector; 4-pole
  • Connection type (1): System/field supply
  • Solid conductor: 0.08 … 2.5 mm² / 28 … 14 AWG
  • Fine-stranded conductor: 0.08 … 2.5 mm² / 28 … 14 AWG
  • Strip length: 8 … 9 mm / 0.31 … 0.35 inch

Physical Data

  • Width: 50.5 mm / 1.988 inch
  • Height: 100 mm / 3.937 inch
  • Depth: 71.1 mm / 2.799 inch
  • Depth from upper edge of DIN-rail: 63.9 mm / 2.516 inch

Mechanical Data

  • Mounting type: DIN-35 rail

Material Data

  • Color: Light gray
  • Housing material: Polycarbonate; polyamide 6.6
  • Fire load: 2.320 MJ
  • Weight: 209.400 g
  • Conformity marking: CE

Environmental Requirements

  • Surrounding air temperature (operation): 0 … 55 °C
  • Surrounding air temperature (storage): -40 … 85 °C
  • Protection type: IP20
  • Pollution degree (5): 2 per IEC 61131-2
  • Operating altitude: 0 … 2000 m
  • Mounting position: Horizontal (standing/lying); vertical
  • Relative humidity (without condensation): 95 %
  • Vibration resistance: Per IEC 60068-2-6
  • Shock resistance: 15g per IEC 60068-2-27
  • EMC immunity to interference: Per EN 61000-6-2
  • EMC emission of interference: Per EN 61000-6-4
  • Exposure to pollutants: Per IEC 60068-2-42 and IEC 60068-2-43
  • Permissible H2S contaminant concentration at a relative humidity 75 %: 10 ppm
  • Permissible SO2 contaminant concentration at a relative humidity 75 %: 25 ppm

Commercial Data

  • Packaging type: Box
  • Country of origin Sales Organisation Germany: DE
  • GTIN: 4045454526771
  • Customs tariff number Sales Organisation Germany: 85176200000
: *
: *
: *
