Features

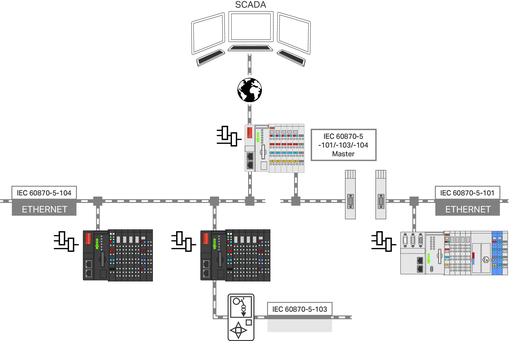

• Use the controller as a telecontrol master to read data from IEC-60870-5-101/-104 field devices or IEC-60870-5-103 protection devices (slaves) and process it locally in the controller.
• Create a gateway application to use this master function to forward read data to a higher-level control system or cloud. This may require additional software licenses, such as the WAGO IEC 60870 Slave, DNP 3 Slave, SparcPlug or the WAGO Cloud.

Specifications

System Requirements

• Other required software: e!COCKPIT Version: V1.8

Software Data

• Supported devices: 750-8210: PFC200; G2; 4ETH RS || 750-8210/025-000: PFC200; G2; 4ETH RS; T || 750-8210/040-000: PFC200; G2; 4ETH RS; XTR || 750-8217: PFC200; G2; LTE 2ETH RS || 750-8217/025-000: PFC200; G2; LTE 2ETH RS; T

Delivery

• Delivery type: License certificate via email (e!COCKPIT already contains the software itself)
• License type (note): The single license allows installation on one controller. One license per controller is required.
• Note on license type (2): A PC with both Internet connection and e!COCKPIT may be required for license activation.

Commercial Data

• GTIN: 4055144059694
• Customs tariff number Sales Organisation Germany: 88888888888
