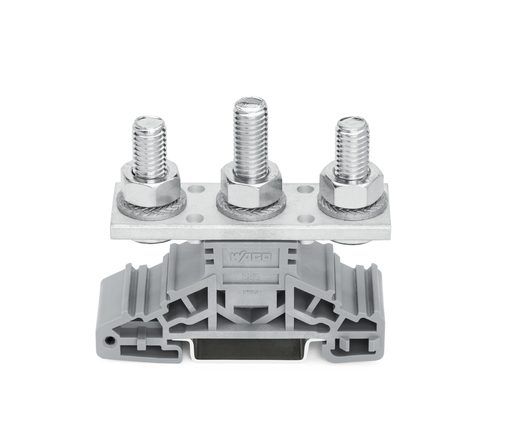

Features

Approvals

• UL International Germany GmbH, UL, E45172, UL 1059
• DEKRA Certification B.V., CCA, 2145295.01, EN 60947
• DEKRA Certification B.V., CCA, NTR NL 6882, EN 60947
• DEKRA Certification B.V., CSA, 70038960, C22.2 No. 158

Specifications

Ratings Per Iec/En

• Nominal voltage (III/3): 1000 V
• Rated surge voltage (III/3): 8 kV
• Rated current: 150 A
• Legend (ratings): (III / 3) ≙ Overvoltage category III / Pollution degree 3

Ratings Per Ul

• Approvals per: UL 1059

Ratings Per Csa

• Approvals per: C22.2 No 158

Connection 1

• Connection technology: Bolt-type connection
• Actuation type: Open-end, ring, socket wrench; 13 mm
• Connectable conductor materials: Copper
• Clamping range: 2.5 … 50 mm² / 14 … 1/0 AWG
• Type of cable lugs according to DIN 46234: Cable lugs for solder-free connectionsRing type, without insulating sleeve, for copper conductors
• Type of cable lugs according to DIN 46235: Cable lugs for compression connectionsCover plate type for copper conductors
• Bolt thread: M8

Physical Data

• Width: 22.8 mm / 0.898 inch
• Height: 67 mm / 2.638 inch
• Depth from upper edge of DIN-rail: 56.7 mm / 2.232 inch

Mechanical Data

• Tightening torque: 6 … 12 Nm
• Mounting type: DIN-35 rail
• Marking level: Side marking

Material Data

• Color: Gray
• Flammability class per UL94: V0
• Fire load: 0.537 MJ
• Weight: 121.800 g

Commercial Data

• Packaging type: Box
• Country of origin Sales Organisation Germany: CN
• GTIN: 4050821049265
• Customs tariff number Sales Organisation Germany: 85369095000
