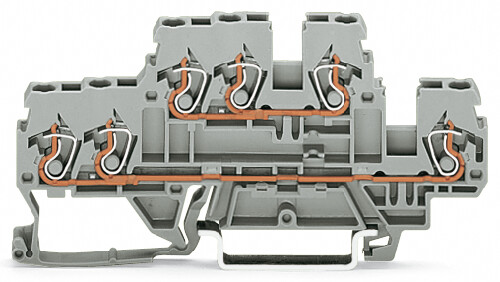

WAGO 870-533

870-533 WAGO 870-533

WAGO 870-533
Part # 870-533
Manufacturer WAGO
GTIN 4045454094485
Condition New
Price: $ 6.04

Please Contact Us for Stock Availability

Qty
Order by 3PM MST (subject to stock availability) same day shipping available!
DBL DECK TRM BLK
Got questions? Send us a message or call us at 1-800-335-5111 for additional assistance.
3-Conductor double deck terminal block through/through l/n

Features

Approvals

  • Lloyds Register, LR, 91/20112 (E9), EN 60947
  • DEKRA Certification B.V., CCA, 2189801.01, EN 60947
  • American Bureau of Shipping, ABS, 20-HG1941090-PDA
  • UL International Germany GmbH, cURus, E45172, UL 1059
  • DEKRA Certification B.V., CCA, NTR NL 7468, EN 60947

Specifications

Notes

  • Safety information 1: Max. insulation diameter: 4.4 mm

Ratings Per Iec/En

  • Ratings per: IEC/EN 60947-7-1
  • Nominal voltage (III/3): 500 V
  • Rated surge voltage (III/3): 6 kV
  • Rated current: 24 A
  • Legend (ratings): (III / 3) ≙ Overvoltage category III / Pollution degree 3

Connection 1

  • Connection technology: CAGE CLAMP®
  • Actuation type: Operating tool
  • Connectable conductor materials: Copper
  • Solid conductor: 0.08 … 2.5 mm² / 28 … 12 AWG
  • Fine-stranded conductor: 0.08 … 4 mm² / 28 … 12 AWG
  • Fine-stranded conductor; with insulated ferrule: 0.08 … 1.5 mm² / 28 … 14 AWG
  • Strip length: 6 … 7 mm / 0.24 … 0.28 inch
  • Wiring direction: Front-entry wiring

Physical Data

  • Width: 5 mm / 0.197 inch
  • Height: 91 mm / 3.583 inch
  • Depth from upper edge of DIN-rail: 40 mm / 1.575 inch

Mechanical Data

  • Potentialkennzeichnung: L/N
  • Design: Horizontal type
  • Mounting type: DIN-35 rail
  • Marking level: Side marking

Material Data

  • Color: Gray
  • Insulation material: Polyamide (PA66)
  • Flammability class per UL94: V0
  • Fire load: 0.199 MJ
  • Weight: 13.999 g

Commercial Data

  • Packaging type: Box
  • Country of origin Sales Organisation Germany: DE
  • GTIN: 4045454094485
  • Customs tariff number Sales Organisation Germany: 85369010000
: *
: *
: *
