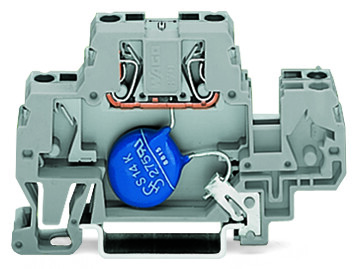

WAGO 870-523/281-584

870-523/281-584 WAGO 870-523/281-584

WAGO 870-523/281-584
Part # 870-523/281-584
Manufacturer WAGO
Condition New
Price: $ 11.36

Please Contact Us for Stock Availability

Qty
Order by 3PM MST (subject to stock availability) same day shipping available!
TRM BLK VARISTOR 60V DC 10MM
Got questions? Send us a message or call us at 1-800-335-5111 for additional assistance.
Terminal blocks with varistor DC 60 V

Specifications

Electrical Data

  • Nominal operating voltage: DC 60 V
  • Continuous operating voltage (max.): DC 85 V
  • Rated continuous current: 20 A
  • Nominal discharge current (8/20 µs), line: 1 kA
  • Discharge current (max.): 4.5 kA
  • Protection level (8/20 μs): ≤ DC 165 V
  • Capacitance: ≤ 1.7 nF

Connection Data

  • Connection points (number): 2
  • Connection technology: CAGE CLAMP®
  • Solid conductor: 0.08 … 2.5 mm² / 28 … 14 AWG
  • Fine-stranded conductor: 0.08 … 4 mm² / 28 … 12 AWG
  • Fine-stranded conductor; with insulated ferrule: 0.08 … 1.5 mm² / 28 … 14 AWG
  • Strip length: 6 … 7 mm / 0.24 … 0.28 inch

Physical Data

  • Width: 10 mm / 0.394 inch
  • Height from upper-edge of DIN-rail: 40 mm / 1.575 inch
  • Depth: 70 mm / 2.756 inch

Mechanical Data

  • Mounting type: DIN-35 rail

Material Data

  • Color: Gray
  • Insulation material: Polyamide (PA66)
  • Flammability class per UL94: V0
  • Fire load: 0.259 MJ
  • Weight: 12.000 g

Commercial Data

  • Packaging type: Box
  • Country of origin Sales Organisation Germany: DE
  • GTIN: 4050821868354
  • Customs tariff number Sales Organisation Germany: 85369010000
: *
: *
: *
