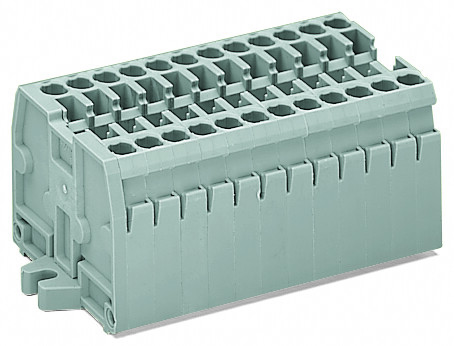

WAGO 869-105

869-105 WAGO 869-105

WAGO 869-105
Part # 869-105
Manufacturer WAGO
GTIN 4044918480611
Condition New
Price: $ 8.70
Qty
2 In stock
Order by 3PM MST (subject to stock availability) same day shipping available!
MOD COMPACT BLOCK TS W/ FF
Got questions? Send us a message or call us at 1-800-335-5111 for additional assistance.
Terminal strip (compact block terminal strip) 5 pole with fixing flanges m 3

Features

Approvals

  • DEKRA Certification B.V., CCA, 2143311.02, EN 60947
  • UL International Germany GmbH, UL, E45172, UL 1059
  • Det Norske Veritas, Germanischer Lloyd, DNV GL, TAE00001V2
  • American Bureau of Shipping, ABS, 20-HG1941090-PDA, EN 60947
  • DEKRA Certification B.V., CCA, NTR NL 6827/A1, EN 60947

Specifications

Notes

  • Safety information 1: Max. insulation diameter: 4.4 mm

Ratings Per Iec/En

  • Nominal voltage (III/3): 500 V
  • Rated surge voltage (III/3): 6 kV
  • Rated current: 24 A
  • Legend (ratings): (III / 3) ≙ Overvoltage category III / Pollution degree 3

Connection 1

  • Connection technology: CAGE CLAMP®
  • Actuation type: Operating tool
  • Connectable conductor materials: Copper
  • Solid conductor: 0.08 … 2.5 mm² / 28 … 12 AWG
  • Fine-stranded conductor: 0.08 … 4 mm² / 28 … 12 AWG
  • Fine-stranded conductor; with insulated ferrule: 0.08 … 1.5 mm² / 28 … 14 AWG
  • Strip length: 6 … 7 mm / 0.24 … 0.28 inch
  • Pole No.: 5
  • Wiring direction: Front-entry wiring

Physical Data

  • Width: 39.5 mm / 1.555 inch
  • Height from the surface: 27.6 mm / 1.087 inch
  • Depth: 33.4 mm / 1.315 inch
  • Module width: 5 mm / 0.197 inch

Mechanical Data

  • Design: Horizontal type
  • Mounting type: Mounting flange M3
  • Marking level: Side marking

Material Data

  • Color: Gray
  • Flammability class per UL94: V0
  • Fire load: 0.414 MJ
  • Weight: 22.323 g

Commercial Data

  • Packaging type: Box
  • Country of origin Sales Organisation Germany: DE
  • GTIN: 4044918480611
  • Customs tariff number Sales Organisation Germany: 85369010000
: *
: *
: *
