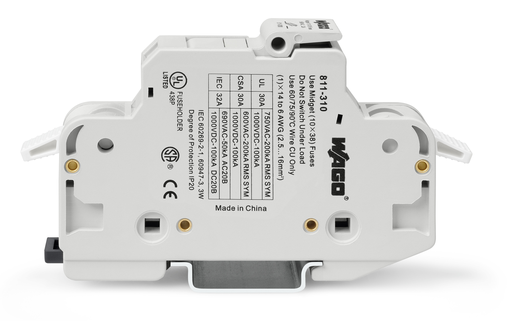

WAGO 811-310

811-310 WAGO 811-310

WAGO 811-310
Part # 811-310
Condition New
Price: $ 14.64

Please Contact Us for Stock Availability

Qty
Order by 3PM MST (subject to stock availability) same day shipping available!
Fuse terminal block
Got questions? Send us a message or call us at 1-800-335-5111 for additional assistance.
Fuse terminal block

Specifications

Ratings Per Iec/En

  • Ratings per: IEC/EN 60947-7-3
  • Ratings (note): Electrical ratings are given by the fuse.
  • Nominal voltage (III/3): 690 V
  • Rated current: 32 A
  • Rated voltage (III/3) 2: 1000 V

Connection 1

  • Connection technology: CAGE CLAMP®
  • Actuation type: Operating tool
  • Connectable conductor materials: Copper
  • Solid conductor: 2.5 … 16 mm² / 14 … 6 AWG
  • Fine-stranded conductor: 2.5 … 16 mm² / 16 … 6 AWG
  • Strip length: 12 … 13 mm / 0.47 … 0.51 inch
  • Pole No.: 1
  • Wiring direction: Side-entry wiring

Physical Data

  • Width: 17.5 mm / 0.689 inch
  • Height: 105 mm / 4.134 inch
  • Depth from upper edge of DIN-rail: 55 mm / 2.165 inch

Mechanical Data

  • Design: Horizontal type
  • Mounting type: DIN-35 rail
  • Art der Sicherung: Cylindrical fuse 10 x 38 mm

Material Data

  • Color: Light gray
  • Insulation material: Polyamide (PA66)
  • Fire load: 0.000 MJ
  • Weight: 1.111 g

Environmental Requirements

  • Continuous operating temperature: -35 … +85 °C

Commercial Data

  • Packaging type: Box
  • GTIN: 4050821498889
: *
: *
: *
