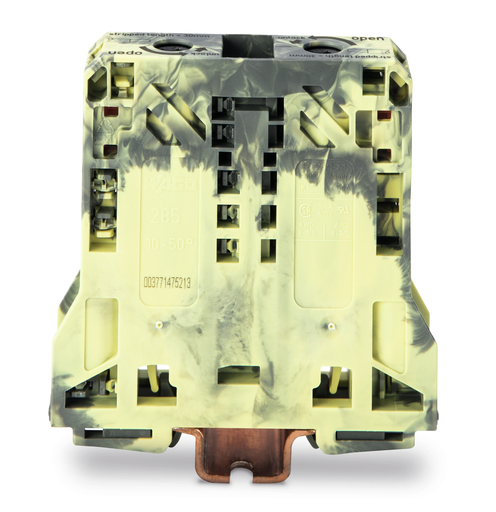

WAGO 285-151

285-151 WAGO 285-151

WAGO 285-151
Part # 285-151
Condition New
Price: $ 24.12

Please Contact Us for Stock Availability

Qty
Order by 3PM MST (subject to stock availability) same day shipping available!
2-conductor through terminal block
Got questions? Send us a message or call us at 1-800-335-5111 for additional assistance.
2-conductor through terminal block

Features

Approvals

  • American Bureau of Shipping, ABS, 20-HG1941090-PDA, EN 60947
  • DEKRA Certification B.V., CSA, 154112, C22.2
  • DEKRA Certification B.V., CCA, NTR NL-7707, EN 60947
  • DEKRA Certification B.V., KEMA/KEUR, 71-101911, EN 60947
  • Underwriters Laboratories Inc., UL, E45172, UL 1059

Specifications

Notes

  • Safety information 1: Only suitable for DIN 35 x 15 rail

Ratings Per Iec/En

  • Ratings per: IEC/EN 60947-7-1
  • Nominal voltage (III/3): 1000 V
  • Rated surge voltage (III/3): 8 kV
  • Rated current: 150 A
  • Legend (ratings): (III / 3) ≙ Overvoltage category III / Pollution degree 3

Ratings Per Ul

  • Approvals per: UL 1059
  • Rated voltage UL (Use Group B): 600 V
  • Rated current UL (Use Group B): 150 A
  • Rated voltage UL (Use Group C): 600 V
  • Rated current UL (Use Group C): 150 A

Ratings Per Csa

  • Approvals per: C22.2 No 158
  • Rated voltage CSA (Use Group B): 600 V
  • Rated current CSA (Use Group B): 150 A
  • Rated voltage CSA (Use Group C): 600 V
  • Rated current CSA (Use Group D): 150 A

Connection 1

  • Connection technology: POWER CAGE CLAMP
  • Actuation type: Operating tool
  • Connectable conductor materials: Copper
  • Solid conductor: 10 … 50 mm² / 8 … 1/0 AWG
  • Stranded conductor: 10 … 50 mm² / 8 … 1/0 AWG
  • Fine-stranded conductor: 10 … 70 mm² / 8 … 2/0 AWG
  • Fine-stranded conductor; with insulated ferrule: 10 … 50 mm² / 8 … 1/0 AWG
  • Fine-stranded conductor; with uninsulated ferrule: 10 … 50 mm² / 8 … 1/0 AWG
  • Strip length: 30 mm / 1.18 inch
  • Wiring direction: Side-entry wiring

Physical Data

  • Width: 20 mm / 0.787 inch
  • Height: 94 mm / 3.701 inch
  • Depth from upper edge of DIN-rail: 87 mm / 3.425 inch

Mechanical Data

  • Design: Horizontal type
  • Mounting type: DIN-35 rail
  • Marking level: Side marking

Material Data

  • Color: Dark gray-yellow
  • Insulation material: Polyamide (PA66)
  • Flammability class per UL94: V0
  • Fire load: 2.094 MJ
  • Weight: 158.650 g

Commercial Data

  • Packaging type: Box
  • Country of origin Sales Organisation Germany: PL
  • GTIN: 4055143500845
  • Customs tariff number Sales Organisation Germany: 85369010000
: *
: *
: *
