WAGO 285-1161

285-1161 WAGO 285-1161

WAGO 285-1161
Part # 285-1161
Condition New
Price: $ 60.38

Please Contact Us for Stock Availability

Qty
Order by 3PM MST (subject to stock availability) same day shipping available!

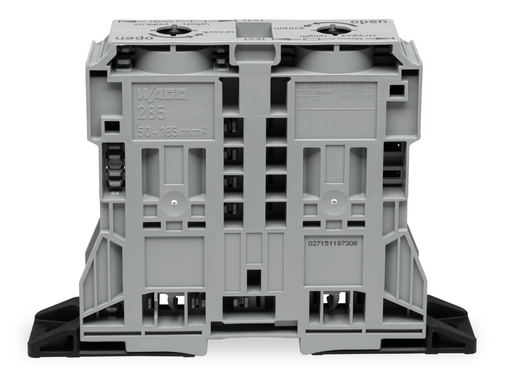

2-conductor through terminal block
Got questions? Send us a message or call us at 1-800-335-5111 for additional assistance.
2-conductor through terminal block

Features

Approvals

  • American Bureau of Shipping, ABS, 20-HG1941090-PDA, EN 60947
  • Underwriters Laboratories Inc., UL, E45172, UL 1059
  • DEKRA Certification B.V., CCA, 2194773.01, EN 60947
  • DEKRA Certification B.V., CSA, 154112, C22.2
  • DEKRA Certification B.V., CCA, NTR NL 7648, EN 60947

Specifications

Ratings Per Iec/En

  • Ratings per: IEC/EN 60947-7-1
  • Nominal voltage (III/3): 1000 V
  • Rated surge voltage (III/3): 12 kV
  • Rated current: 353 A
  • Rated voltage (III/3) 2: 1500 V
  • Rated surge voltage (III/3) 2: 12 kV
  • Legend (ratings): (III / 3) ≙ Overvoltage category III / Pollution degree 3

Ratings Per Ul

  • Approvals per: UL 1059
  • Rated voltage UL (Use Group B): 600 V
  • Rated current UL (Use Group B): 310 A
  • Rated voltage UL (Use Group C): 600 V
  • Rated current UL (Use Group C): 310 A

Ratings Per Csa

  • Approvals per: C22.2 No 158
  • Rated voltage CSA (Use Group B): 1000 V
  • Rated current CSA (Use Group B): 310 A
  • Rated voltage CSA (Use Group C): 1000 V
  • Rated current CSA (Use Group D): 310 A

Connection 1

  • Connection technology: POWER CAGE CLAMP
  • Actuation type: Operating tool
  • Connectable conductor materials: Copper
  • Nominal cross-section: 185 mm²
  • Solid conductor: 50 … 185 mm² / 1/0 AWG … 350 kcmil
  • Stranded conductor: 50 … 185 mm² / 1/0 AWG … 350 kcmil
  • Fine-stranded conductor: 50 … 185 mm² / 1/0 AWG … 350 kcmil
  • Fine-stranded conductor; with insulated ferrule: 50 … 150 mm² / 1/0 AWG … 300 kcmil
  • Fine-stranded conductor; with uninsulated ferrule: 50 … 185 mm² / 1/0 AWG … 350 kcmil
  • Strip length: 45 … 47 mm / 1.77 … 1.85 inch
  • Wiring direction: Side-entry wiring

Physical Data

  • Width: 32 mm / 1.26 inch
  • Height from the surface: 123 mm / 4.843 inch
  • Depth: 170 mm / 6.693 inch

Mechanical Data

  • Design: Horizontal type
  • Mounting type: Mounting flange
  • Marking level: Side marking

Material Data

  • Color: Gray
  • Insulation material: Polyamide (PA66)
  • Flammability class per UL94: V0
  • Fire load: 4.844 MJ
  • Weight: 552.000 g

Commercial Data

  • Packaging type: Box
  • Country of origin Sales Organisation Germany: DE
  • GTIN: 4055143424141
  • Customs tariff number Sales Organisation Germany: 85369010000
: *
: *
: *
