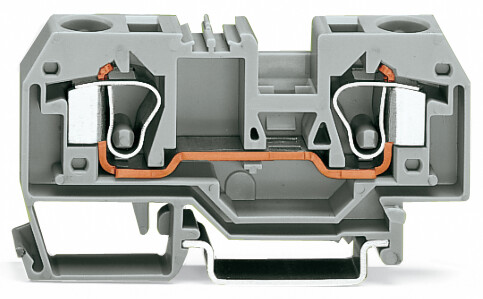

WAGO 284-902

284-902 WAGO 284-902

WAGO 284-902
Part # 284-902
Manufacturer WAGO
GTIN 4044918305754
Condition New
Price: $ 5.09

Please Contact Us for Stock Availability

Qty
Order by 3PM MST (subject to stock availability) same day shipping available!
THROUGH TERM BLOCK - ORANGE
Got questions? Send us a message or call us at 1-800-335-5111 for additional assistance.
2-Conductor through terminal block

Features

Approvals

  • DEKRA Certification B.V., KEMA/KEUR, 2178517.01, EN 60947
  • Lloyds Register, LR, 91/20112 (E9), EN 60947
  • DEKRA Certification B.V., CSA, 1536073, C22.2 No. 158
  • American Bureau of Shipping, ABS, 20-HG1941090-PDA, EN 60947
  • DEKRA Certification B.V., CCA, NTR NL-7379, EN 60947
  • Bureau Veritas S.A., BV, 07436/F0 BV, EN 60947
  • Det Norske Veritas, Germanischer Lloyd, DNV GL, TAE00001V2
  • UL International Germany GmbH, UL, E45172, UL 1059

Specifications

Ratings Per Iec/En

  • Ratings per: IEC/EN 60947-7-1
  • Nominal voltage (III/3): 800 V
  • Rated surge voltage (III/3): 8 kV
  • Rated current: 57 A
  • Legend (ratings): (III / 3) ≙ Overvoltage category III / Pollution degree 3

Connection 1

  • Connection technology: CAGE CLAMP®
  • Actuation type: Operating tool
  • Connectable conductor materials: Copper
  • Solid conductor: 0.2 … 10 mm² / 24 … 8 AWG
  • Fine-stranded conductor: 0.2 … 10 mm² / 24 … 8 AWG
  • Strip length: 12 … 13 mm / 0.47 … 0.51 inch
  • Wiring direction: Front-entry wiring

Physical Data

  • Width: 10 mm / 0.394 inch
  • Height: 78 mm / 3.071 inch
  • Depth from upper edge of DIN-rail: 35 mm / 1.378 inch

Mechanical Data

  • Design: Horizontal type
  • Mounting type: DIN-35 rail
  • Marking level: Center marking

Material Data

  • Color: Orange
  • Insulation material: Polyamide (PA66)
  • Flammability class per UL94: V0
  • Fire load: 0.348 MJ
  • Weight: 23.230 g

Commercial Data

  • Packaging type: Box
  • Country of origin Sales Organisation Germany: DE
  • GTIN: 4044918305754
  • Customs tariff number Sales Organisation Germany: 85369010000
: *
: *
: *
