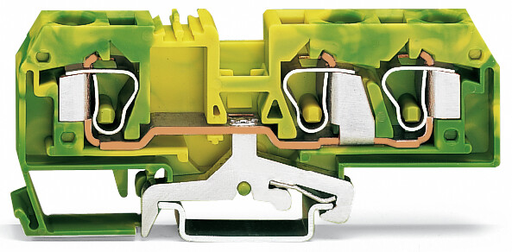

WAGO 284-687/999-950

284-687/999-950 WAGO 284-687/999-950

WAGO 284-687/999-950
Part # 284-687/999-950
Manufacturer WAGO
GTIN 4045454091569
Condition New
Price: $ 15.02

Please Contact Us for Stock Availability

Qty
Order by 3PM MST (subject to stock availability) same day shipping available!
GROUND 3-CONDUCTOR TERM BLK -GR/YL
Got questions? Send us a message or call us at 1-800-335-5111 for additional assistance.
3-Conductor earth terminal block suitable for Ex e applications eex shielded wiring

Features

Approvals

  • Physikalisch Technische Bundesanstalt (PTB), IECEx, IECEx PTB 14.0046U Ex eb IIC Gb and Ex eb I Mb, IEC 60079
  • Lloyds Register, LR, 91/20112 (E9), EN 60947
  • Brjansker Zertifizierungsstelle, EAC, RU C-DE.AM02.B.00127/19, TP TC 012/2011
  • Bureau Veritas S.A., BV, 07436/F0 BV, EN 60947
  • UL International Germany GmbH c/o Physikalisch Technische Bundesanstalt, AEx, E185892, UL 60079
  • UL International Germany GmbH, UL, E45172, UL 1059
  • DEKRA Certification B.V., CCA, NTR NL-7379, EN 60947
  • DEKRA Certification B.V., KEMA/KEUR, 2178517.01, EN 60947
  • American Bureau of Shipping, ABS, 20-HG1941090-PDA, EN 60947
  • Det Norske Veritas, Germanischer Lloyd, DNV GL, TAE00001V2
  • CQST/CNEx, CCCEx, 2020312313000176, CNCA-C23-01
  • Physikalisch Technische Bundesanstalt (PTB), ATEx, PTB 98 ATEX 3133 UII 2 G Ex eb IIC bzw. I M 2 Ex eb I Mb, EN 60079

Specifications

Ratings Per Iec/En

  • Ratings per: IEC/EN 60947-7-2

Connection 1

  • Connection technology: CAGE CLAMP®
  • Actuation type: Operating tool
  • Connectable conductor materials: Copper
  • Solid conductor: 0.2 … 10 mm² / 24 … 8 AWG
  • Fine-stranded conductor: 0.2 … 10 mm² / 24 … 8 AWG
  • Strip length: 12 … 13 mm / 0.47 … 0.51 inch
  • Wiring direction: Front-entry wiring

Physical Data

  • Width: 10 mm / 0.394 inch
  • Height: 97.5 mm / 3.839 inch
  • Depth from upper edge of DIN-rail: 35 mm / 1.378 inch

Mechanical Data

  • Design: Horizontal type
  • Mounting type: DIN-35 rail
  • Marking level: Center marking

Material Data

  • Color: Green-yellow
  • Insulation material: Polyamide (PA66)
  • Flammability class per UL94: V0
  • Fire load: 0.409 MJ
  • Weight: 40.044 g

Commercial Data

  • Packaging type: Box
  • Country of origin Sales Organisation Germany: DE
  • GTIN: 4045454091569
  • Customs tariff number Sales Organisation Germany: 85369010000
: *
: *
: *
