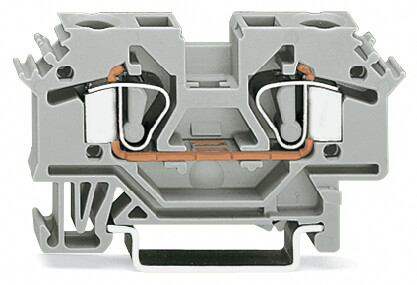

WAGO 282-691

282-691 WAGO 282-691

WAGO 282-691
Part # 282-691
Manufacturer WAGO
GTIN 4044918306898
Condition New
Price: $ 3.74

Please Contact Us for Stock Availability

Qty
Order by 3PM MST (subject to stock availability) same day shipping available!
RL MTD TRM BLK-1-EEX
Got questions? Send us a message or call us at 1-800-335-5111 for additional assistance.
2-Conductor Ex e II through terminal block suitable for Ex e applications

Features

Approvals

  • DEKRA Certification B.V., CCA, NTR NL-7522, EN 60947
  • Brjansker Zertifizierungsstelle, EAC, RU C-DE.AM02.B.00127/19, TP TC 012/2011
  • DEKRA Certification B.V., CCA, 2195540.01, EN 60947
  • UL International Germany GmbH, UR, E45172, UL 1059
  • DEKRA Certification B.V., CCA, 2195540.01, IEC 60947
  • UL International Germany GmbH c/o Physikalisch Technische Bundesanstalt, AEx, E185892, UL 60079
  • Physikalisch Technische Bundesanstalt, IECEx, IECEx PTB 03.0004U Ex eb IIC Gb or Ex eb I Mb, IEC 60079-0
  • Bureau Veritas S.A., BV, 07436/F0 BV, EN 60947
  • CQST/CNEx, CCCEx, 2020312313000232, CNCA-C23-01
  • DEKRA Certification B.V., CSA, 1505033, C22.2 No. 158
  • American Bureau of Shipping, ABS, 20-HG1941090-PDA, EN 60947
  • Lloyds Register, LR, 91/20112 (E9), EN 60947
  • Physikalisch Technische Bundesanstalt (PTB), ATEx, PTB 98 ATEX 3131 UII 2 G Ex eb IIC Gb bzw. I M 2 Ex eb I Mb

Specifications

Ratings Per Iec/En

  • Ratings per: IEC/EN 60947-7-1

Ex Information

  • Rated voltage EN (Ex e II): 550 V
  • Rated current (Ex e II): 39 A

Connection 1

  • Connection technology: CAGE CLAMP®
  • Actuation type: Operating tool
  • Connectable conductor materials: Copper
  • Solid conductor: 0.2 … 6 mm² / 24 … 10 AWG
  • Fine-stranded conductor: 0.2 … 6 mm² / 24 … 10 AWG
  • Strip length: 12 … 13 mm / 0.47 … 0.51 inch
  • Wiring direction: Front-entry wiring

Physical Data

  • Width: 8 mm / 0.315 inch
  • Height: 62 mm / 2.441 inch
  • Depth from upper edge of DIN-rail: 31.5 mm / 1.24 inch

Mechanical Data

  • Design: Horizontal type
  • Mounting type: DIN-35 rail
  • Marking level: Side marking

Material Data

  • Color: Light gray
  • Insulation material: Polyamide (PA66)
  • Flammability class per UL94: V0
  • Fire load: 0.207 MJ
  • Weight: 12.622 g

Commercial Data

  • Packaging type: Box
  • Country of origin Sales Organisation Germany: DE
  • GTIN: 4044918306898
  • Customs tariff number Sales Organisation Germany: 85369010000
: *
: *
: *
