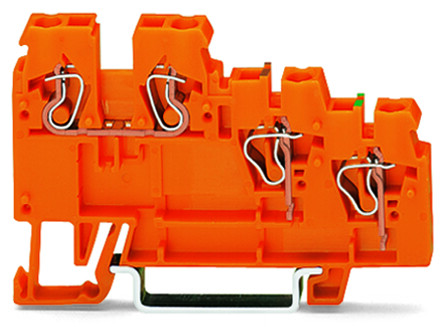

WAGO 270-586

270-586 WAGO 270-586

WAGO 270-586
Part # 270-586
Manufacturer WAGO
GTIN 4050821035299
Condition New
Price: $ 6.44

Please Contact Us for Stock Availability

Qty
Note: you must order at least 10 items
Order by 3PM MST (subject to stock availability) same day shipping available!
3 CON ACTUATOR SUPPLY TB ORANGE
Got questions? Send us a message or call us at 1-800-335-5111 for additional assistance.
3-Conductor actuator supply terminal block locking device

Features

Approvals

  • DEKRA Certification B.V., CCA, NTR NL 6828, EN 60947
  • DEKRA Certification B.V., CCA, 2143311.03, EN 60947
  • Underwriters Laboratories Inc., UR, E45172, UL 1059
  • DEKRA Certification B.V., CSA, 1565649, C22.2

Specifications

Ratings Per Iec/En

  • Nominal voltage (III/3): 250 V
  • Rated surge voltage (III/3): 4 kV
  • Rated current: 18 A
  • Legend (ratings): (III / 3) ≙ Overvoltage category III / Pollution degree 3

Connection 1

  • Connection technology: CAGE CLAMP®
  • Actuation type: Operating tool
  • Connectable conductor materials: Copper
  • Solid conductor: 0.08 … 2.5 mm² / 28 … 12 AWG
  • Fine-stranded conductor: 0.08 … 2.5 mm² / 28 … 12 AWG
  • Note (conductor cross-section): 12 AWG: THHN, THWN
  • Strip length: 6 … 7 mm / 0.24 … 0.28 inch
  • Wiring direction: Front-entry wiring

Physical Data

  • Width: 5 mm / 0.197 inch
  • Height: 68 mm / 2.677 inch
  • Depth from upper edge of DIN-rail: 39 mm / 1.535 inch

Mechanical Data

  • Design: Horizontal type
  • Mounting type: DIN-35 rail
  • Marking level: Side marking

Material Data

  • Color: Orange
  • Flammability class per UL94: V0
  • Fire load: 0.172 MJ
  • Weight: 8.700 g

Commercial Data

  • Packaging type: Box
  • Country of origin Sales Organisation Germany: CN
  • GTIN: 4050821035299
  • Customs tariff number Sales Organisation Germany: 85369010000
: *
: *
: *
