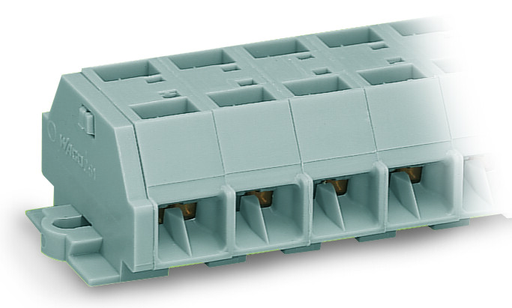

WAGO 261-255

261-255 WAGO 261-255

WAGO 261-255
Part # 261-255
Manufacturer WAGO
GTIN 4044918628068
Condition New
Price: $ 7.08

Please Contact Us for Stock Availability

Qty
Order by 3PM MST (subject to stock availability) same day shipping available!
MOD TRM STR 5-POS W/SNAP IN MTG FT
Got questions? Send us a message or call us at 1-800-335-5111 for additional assistance.
MOD TRM STR 5-POS W/SNAP IN MTG FT

Features

Approvals

  • DEKRA Certification B.V., CCA, 2110272.02, EN 60998
  • Underwriters Laboratories Inc., UR, E45172, UL 1059
  • American Bureau of Shipping, ABS, 19-HG1869868-PDA
  • Bureau Veritas S.A., BV, 07436/F0 BV, EN 60947
  • DEKRA Certification B.V., CSA, 70010891, C22.2
  • DEKRA Certification B.V., CCA, NTR-NL 6509, EN 60998
  • Lloyds Register, LR, 91/20242 (E7), IEC 60998

Specifications

Ratings Per Iec/En

  • Nominal voltage (III/3): 500 V
  • Rated surge voltage (III/3): 6 kV
  • Rated current: 24 A
  • Legend (ratings): (III / 3) ≙ Overvoltage category III / Pollution degree 3

Connection 1

  • Connection technology: CAGE CLAMP®
  • Actuation type: Operating tool
  • Connectable conductor materials: Copper
  • Solid conductor: 0.08 … 2.5 mm² / 28 … 14 AWG
  • Fine-stranded conductor: 0.08 … 2.5 mm² / 28 … 14 AWG
  • Strip length: 8 … 9 mm / 0.31 … 0.35 inch
  • Pole No.: 5
  • Wiring direction: Side-entry wiring

Physical Data

  • Width: 53 mm / 2.087 inch
  • Height from the surface: 18.1 mm / 0.713 inch
  • Depth: 28.1 mm / 1.106 inch
  • Module width: 10 mm / 0.394 inch

Mechanical Data

  • Design: Horizontal type
  • Mounting type: Snap-in foot
  • Marking level: Side marking

Material Data

  • Color: Gray
  • Insulation material: Polyamide (PA66)
  • Flammability class per UL94: V0
  • Fire load: 0.321 MJ
  • Weight: 20.720 g

Commercial Data

  • Packaging type: Box
  • Country of origin Sales Organisation Germany: DE
  • GTIN: 4044918628068
  • Customs tariff number Sales Organisation Germany: 85369010000
: *
: *
: *
