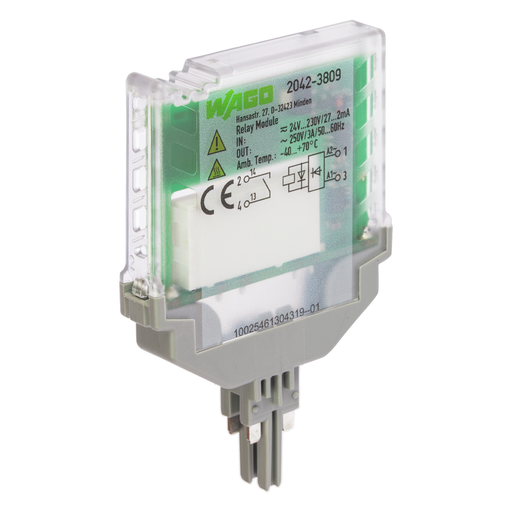

Features

Approvals

• Underwriters Laboratories Inc., UL, E175199, UL 61010-1

Specifications

Control Circuit

• Nominal input voltage UN: AC/DC 24 … 230 V
• Input voltage range: ±10 %
• Nominal input current at UN: 1.7 mA (230 V); 26.3 mA (24 V)

Load Circuit

• Number of make/switch-on contacts: 1
• Contact material (relay): AgSnO2
• Limiting continuous current: 3 A
• Switching voltage (max.): AC 250 V
• Switching power (resistive) (max.): AC 750 VA; DC (see load limit curve)
• Switching capacity: AC-15: 3 A / AC 250 V; DC-13: 2 A / DC 24 V
• Recommended minimum load: 10 V / 10 mA; 24 V / 1 mA
• Pull-in time (typ.): 8 ms
• Drop-out time (typ.): 4 ms
• Electrical life (NO; resistive load; 23 °C): 50 x 103 switching operations
• Mechanical life: 5 x 106 switching operations

Signaling

• Status indicator: Green LED

Safety And Protection

• Rated voltage: 250 V
• Pollution degree: 2
• Dielectric strength, control/load circuit (AC, 1 min): 3 kVrms
• Dielectric strength, open contact (AC, 1 min): 1 kVrms
• Protection type: IP20

Physical Data

• Width: 10.3 mm / 0.406 inch
• Height: 77.7 mm / 3.059 inch
• Height from the surface: 59.3 mm / 2.335 inch
• Depth: 52 mm / 2.047 inch

Mechanical Data

• Mounting type: Pluggable module for TOPJOB® S Carrier Terminal Block

Material Data

• Flammability class per UL94: V0
• Fire load: 0.107 MJ
• Weight: 31.550 g

Environmental Requirements

• Surrounding air temperature (operation at UN): -40 … 70 °C
• Surrounding air temperature (storage): -40 … 85 °C
• Processing temperature: -25 … +50 °C
• Operating altitude (max.): 2000 m

Standards And Specifications

• Standards/Specifications: EN 61010-2-201 || EN 61373 || EN 50121-3-2

Commercial Data

• Packaging type: Box
• Country of origin Sales Organisation Germany: DE
• GTIN: 4055143709538
• Customs tariff number Sales Organisation Germany: 85364900990
