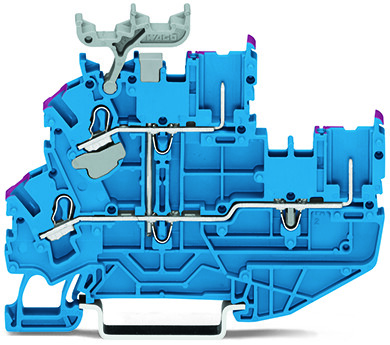

WAGO 2022-2239

2022-2239 WAGO 2022-2239

WAGO 2022-2239
Part # 2022-2239
Condition New
Price: $ 4.58

Please Contact Us for Stock Availability

Qty
Order by 3PM MST (subject to stock availability) same day shipping available!
2-conductor/2-pin, double-deck tb
Got questions? Send us a message or call us at 1-800-335-5111 for additional assistance.
2-conductor/2-pin, double-deck tb

Features

Approvals

  • Underwriters Laboratories Inc., UL, E45172, UL 1059
  • Bureau Veritas S.A., BV, 38586/A0 BV, EN 60947
  • Det Norske Veritas, Germanischer Lloyd, DNV GL, TAE00001V2
  • Lloyds Register, LR, 91/20112 (E9), EN 60947
  • American Bureau of Shipping, ABS, 20-HG1941090-PDA, EN 60947
  • DEKRA Certification B.V., CSA, 2437422, C22.2 No. 158

Specifications

Ratings Per Iec/En

  • Ratings per: IEC/EN 60947-7-1
  • Nominal voltage (III/3): 690 V
  • Rated surge voltage (III/3): 6 kV
  • Rated current: 24 A
  • Rated current 2: 28 A
  • Legend (ratings): (III / 3) ≙ Overvoltage category III / Pollution degree 3

Ratings Per Ul

  • Approvals per: UL 1059
  • Rated voltage UL (Use Group B): 600 V
  • Rated current UL (Use Group B): 20 A
  • Rated voltage UL (Use Group C): 600 V
  • Rated current UL (Use Group C): 20 A

Ratings Per Csa

  • Approvals per: C22.2 No 158
  • Rated voltage CSA (Use Group C): 600 V
  • Rated current CSA (Use Group C): 20 A

Connection 1

  • Connection technology: Push-in CAGE CLAMP®
  • Actuation type: Operating tool || Push-in
  • Connectable conductor materials: Copper
  • Nominal cross-section: 2.5 mm²
  • Solid conductor: 0.25 … 4 mm² / 22 … 12 AWG
  • Solid conductor; push-in termination: 0.75 … 4 mm² / 18 … 12 AWG
  • Fine-stranded conductor: 0.25 … 4 mm² / 22 … 12 AWG
  • Fine-stranded conductor; with insulated ferrule: 0.25 … 2.5 mm² / 22 … 14 AWG
  • Fine-stranded conductor; with ferrule; push-in termination: 1 … 2.5 mm² / 18 … 14 AWG
  • Note (conductor cross-section): Depending on the conductor characteristic, a conductor with a smaller cross-section can also be inserted via push-in termination.
  • Strip length: 10 … 12 mm / 0.39 … 0.47 inch
  • Wiring direction: Front-entry wiring

Physical Data

  • Width: 5.2 mm / 0.205 inch
  • Height: 80.1 mm / 3.154 inch
  • Depth from upper edge of DIN-rail: 61.4 mm / 2.417 inch

Mechanical Data

  • Potentialkennzeichnung: N
  • Design: Horizontal type
  • Mounting type: DIN-35 rail
  • Marking level: Side marking

Material Data

  • Color: Blue
  • Insulation material: Polyamide (PA66)
  • Flammability class per UL94: V0
  • Fire load: 0.263 MJ
  • Weight: 12.762 g

Commercial Data

  • Packaging type: Box
  • Country of origin Sales Organisation Germany: DE
  • GTIN: 4045454916589
  • Customs tariff number Sales Organisation Germany: 85366990990
: *
: *
: *
