Underwriters Laboratories Inc., UL, E45172, UL 1059
Bureau Veritas S.A., BV, 38586/A0 BV, EN 60947
Det Norske Veritas, Germanischer Lloyd, DNV GL, TAE00001V2
DEKRA Certification B.V., KEMA/KEUR, 71-101560, EN 61984
Lloyds Register, LR, 91/20112 (E9), EN 60947
American Bureau of Shipping, ABS, 20-HG1941090-PDA, EN 60947
Specifications
Notes
Safety information 1: According to EN 61984, pluggable connectors without current interrupting capacity must not be mated or unmated when live or under load.
Note (conductor cross-section): Depending on the conductor characteristic, a conductor with a smaller cross-section can also be inserted via push-in termination.
Strip length: 10 … 12 mm / 0.39 … 0.47 inch
Pole No.: 1
Wiring direction: Front-entry wiring
Physical Data
Width: 5.2 mm / 0.205 inch
Height: 40.5 mm / 1.594 inch
Depth: 22.4 mm / 0.882 inch
Mechanical Data
Marking level: Side marking
Plug-In Connection

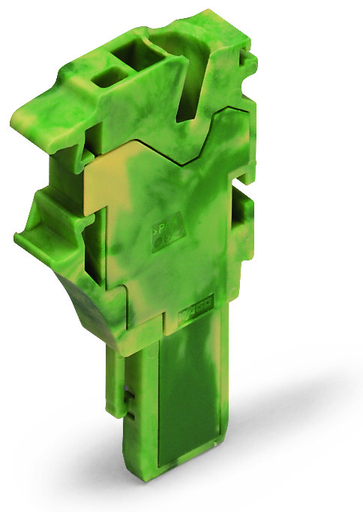

Contact type (pluggable connector): Female connector/socket
Connector (connection type): For conductor
Material Data
Color: Green-yellow
Insulation material: Polyamide (PA66)
Flammability class per UL94: V0
Fire load: 0.060 MJ
Weight: 3.415 g
Commercial Data
Packaging type: Bag
Country of origin Sales Organisation Germany: CN
GTIN: 4050821243342
Customs tariff number Sales Organisation Germany: 85366990990
