WAGO 2016-7601

2016-7601 WAGO 2016-7601

WAGO 2016-7601
Part # 2016-7601
Condition New
Price: $ 5.28

Please Contact Us for Stock Availability

Qty
Order by 3PM MST (subject to stock availability) same day shipping available!

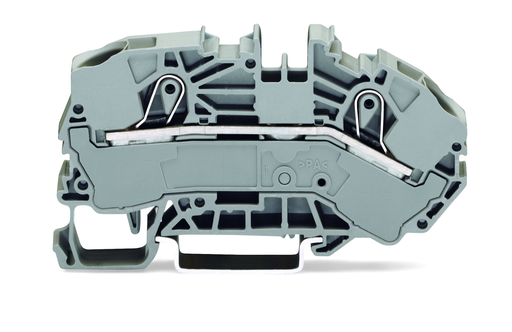

2-cond. supply tbs for distr. boxes
Got questions? Send us a message or call us at 1-800-335-5111 for additional assistance.
2-cond. supply tbs for distr. boxes

Features

Approvals

  • DEKRA Certification B.V., CCA, 2172580.01, EN 60947
  • Det Norske Veritas, Germanischer Lloyd, DNV GL, TAE00001V2
  • DEKRA Certification B.V., CCA, NTR NL-7294, EN 60947
  • American Bureau of Shipping, ABS, 20-HG1941090-PDA

Specifications

Ratings Per Iec/En

  • Ratings per: IEC/EN 60947-7-1
  • Nominal voltage (III/3): 800 V
  • Rated surge voltage (III/3): 8 kV
  • Rated current: 76 A
  • Legend (ratings): (III / 3) ≙ Overvoltage category III / Pollution degree 3

Connection 1

  • Connection technology: Push-in CAGE CLAMP®
  • Actuation type: Push-in || Operating tool
  • Connectable conductor materials: Copper
  • Nominal cross-section: 16 mm²
  • Solid conductor: 0.5 … 16 mm² / 20 … 6 AWG
  • Solid conductor; push-in termination: 6 … 16 mm² / 14 … 6 AWG
  • Fine-stranded conductor: 0.5 … 25 mm² / 20 … 4 AWG
  • Fine-stranded conductor; with insulated ferrule: 0.5 … 16 mm² / 20 … 6 AWG
  • Fine-stranded conductor; with ferrule; push-in termination: 6 … 16 mm² / 10 … 6 AWG
  • Note (conductor cross-section): Depending on the conductor characteristic, a conductor with a smaller cross-section can also be inserted via push-in termination.
  • Strip length: 18 … 20 mm / 0.71 … 0.79 inch
  • Wiring direction: Front-entry wiring

Physical Data

  • Width: 12 mm / 0.472 inch
  • Height: 85.7 mm / 3.374 inch
  • Depth from upper edge of DIN-rail: 40.8 mm / 1.606 inch

Mechanical Data

  • Design: Angled
  • Mounting type: DIN-35 rail
  • Marking level: Center/side marking

Material Data

  • Color: Gray
  • Insulation material: Polyamide (PA66)
  • Flammability class per UL94: V0
  • Fire load: 0.043 MJ
  • Weight: 29.430 g

Commercial Data

  • Packaging type: Box
  • Country of origin Sales Organisation Germany: PL
  • GTIN: 4045454725082
  • Customs tariff number Sales Organisation Germany: 85369010000
: *
: *
: *
