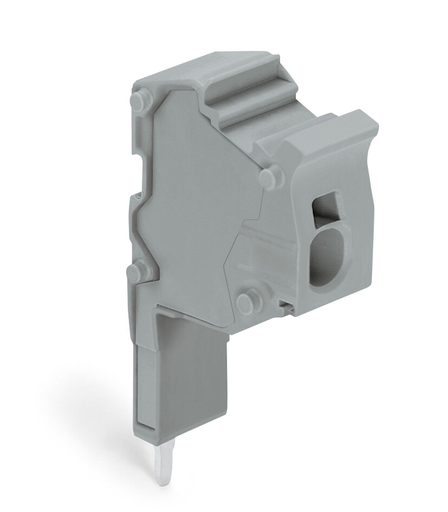

WAGO 2016-511

2016-511 WAGO 2016-511

WAGO 2016-511
Part # 2016-511
Manufacturer WAGO
GTIN 4050821263739
Condition New
Price: $ 4.06
Qty
20 In stock
Order by 3PM MST (subject to stock availability) same day shipping available!
TJS MODULAR PLUG CONNECTOR
Got questions? Send us a message or call us at 1-800-335-5111 for additional assistance.
TJS MODULAR PLUG CONNECTOR

Specifications

Notes

  • Safety information 1: According to EN 61984, pluggable connectors without current interrupting capacity must not be mated or unmated when live or under load.

Ratings Per Iec/En

  • Nominal voltage (III/3): 500 V
  • Rated surge voltage (III/3): 6 kV
  • Rated current: 32 A
  • Legend (ratings): (III / 3) ≙ Overvoltage category III / Pollution degree 3

Connection 1

  • Connection technology: Push-in CAGE CLAMP®
  • Actuation type: Operating tool
  • Connectable conductor materials: Copper
  • Nominal cross-section: 4 mm²
  • Solid conductor: 0.5 … 6 mm² / 20 … 10 AWG
  • Solid conductor; push-in termination: 6 mm² / 14 … 10 AWG
  • Fine-stranded conductor: 0.5 … 6 mm² / 20 … 10 AWG
  • Fine-stranded conductor; with insulated ferrule: 0.5 … 4 mm² / 20 … 12 AWG
  • Fine-stranded conductor; with ferrule; push-in termination: 6 mm² / 18 AWG
  • Note (conductor cross-section): Depending on the conductor characteristic, a conductor with a smaller cross-section can also be inserted via push-in termination.
  • Strip length: 11 … 13 mm / 0.43 … 0.51 inch
  • Pole No.: 1
  • Wiring direction: Side-entry wiring

Physical Data

  • Width: 12 mm / 0.472 inch
  • Module width: 12 mm / 0.472 inch

Mechanical Data

  • Marking level: Center/side marking

Material Data

  • Color: Gray
  • Insulation material: Polyamide (PA66)
  • Fire load: 0.006 MJ
  • Weight: 5.285 g

Commercial Data

  • Packaging type: Box
  • Country of origin Sales Organisation Germany: DE
  • GTIN: 4050821263739
  • Customs tariff number Sales Organisation Germany: 85366990990
: *
: *
: *
