Online Electronics

WAGO 2016-1307

2016-1307 WAGO 2016-1307

WAGO 2016-1307
Part # 2016-1307
Manufacturer WAGO
GTIN 4017332077200
Condition New
Price: $ 11.99
Qty
13 In stock
Order by 3PM MST (subject to stock availability) same day shipping available!

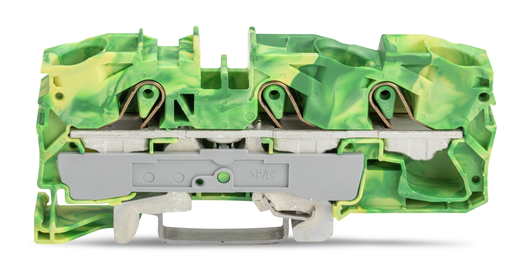

3 CONDUCTOR GRD RL MTD TERM BLK-TJS
Got questions? Send us a message or call us at 1-800-335-5111 for additional assistance.
3-Conductor earth terminal block suitable for Ex e applications

Features

Approvals

  • Brjansker Zertifizierungsstelle, EAC, RU C-DE.AM02.B.00127/19, TP TC 012/2011
  • Physikalisch Technische Bundesanstalt (PTB), ATEx, PTB 05 ATEX 1031 UII 2 G Ex eb II Gb bzw. I M2 Ex eb I Mb, EN 60079
  • Underwriters Laboratories Inc., UL, E45172, UL 1059
  • American Bureau of Shipping, ABS, 20-HG1941090-PDA
  • DEKRA Certification B.V., KEMA/KEUR, 71-119271, EN 60947
  • Physikalisch Technische Bundesanstalt (PTB), IECEx, IECEx PTB 05.0015 U Ex eb IIC Gb and Ex eb I Mb, IEC 60079
  • UL International Germany GmbH c/o Physikalisch Technische Bundesanstalt, AEx, E185892, UL 60079
  • DEKRA Certification B.V., CSA, 1579112, C22.2 No. 158
  • CQST/CNEx, CCCEx, 2020312313000162, CNCA-C23-01
  • Lloyds Register, LR, 91/20112 (E9), EN 60947
  • Det Norske Veritas, Germanischer Lloyd, DNV GL, TAE00001V2
  • Bureau Veritas S.A., BV, 38586/A0, EN 60947
  • DEKRA Certification B.V., CCA, NTR NL-7881, EN 60947

Specifications

Ratings Per Iec/En

  • Ratings per: IEC/EN 60947-7-2
  • Note on rated current 1: 15 mm high DIN-35 rails shall be used for a current load higher than 76 A!

Connection 1

  • Connection technology: Push-in CAGE CLAMP®
  • Actuation type: Push-in || Operating tool
  • Connectable conductor materials: Copper
  • Nominal cross-section: 16 mm²
  • Solid conductor: 0.5 … 16 mm² / 20 … 6 AWG
  • Solid conductor; push-in termination: 6 … 16 mm² / 14 … 6 AWG
  • Fine-stranded conductor: 0.5 … 25 mm² / 20 … 4 AWG
  • Fine-stranded conductor; with insulated ferrule: 0.5 … 16 mm² / 20 … 6 AWG
  • Fine-stranded conductor; with ferrule; push-in termination: 6 … 16 mm² / 10 … 6 AWG
  • Note (conductor cross-section): Depending on the conductor characteristic, a conductor with a smaller cross-section can also be inserted via push-in termination.
  • Strip length: 18 … 20 mm / 0.71 … 0.79 inch
  • Wiring direction: Front-entry wiring

Physical Data

  • Width: 12 mm / 0.472 inch
  • Height: 91.8 mm / 3.622 inch
  • Depth from upper edge of DIN-rail: 36.9 mm / 1.453 inch

Mechanical Data

  • Design: Horizontal type
  • Mounting type: DIN-35 rail
  • Marking level: Center/side marking

Material Data

  • Color: Green-yellow
  • Insulation material: Polyamide (PA66)
  • Flammability class per UL94: V0
  • Fire load: 0.456 MJ
  • Weight: 46.231 g

Commercial Data

  • Packaging type: Box
  • Country of origin Sales Organisation Germany: DE
  • GTIN: 4017332077200
  • Customs tariff number Sales Organisation Germany: 85369010000
: *
: *
: *
