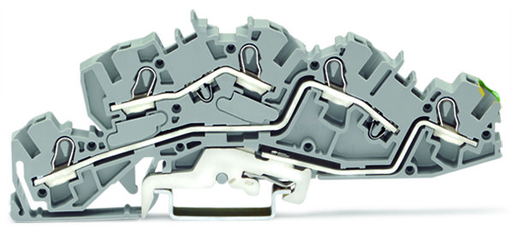

WAGO 2005-7645

2005-7645 WAGO 2005-7645

WAGO 2005-7645
Part # 2005-7645
Manufacturer WAGO
Condition New
Price: $ 9.20

Please Contact Us for Stock Availability

Qty
Note: you must order at least 10 items
Order by 3PM MST (subject to stock availability) same day shipping available!
TOPJOB S MULTI LEVEL TRM BLK L/L/PE
Got questions? Send us a message or call us at 1-800-335-5111 for additional assistance.
Multilevel installation terminal block l/l/pe

Features

Approvals

  • DEKRA Certification B.V., CCA, 2129185.01, EN 60947
  • Det Norske Veritas, Germanischer Lloyd, DNV GL, TAE00001V2
  • Lloyds Register, LR, 91/20112 (E9), EN 60947
  • DEKRA Certification B.V., CCA, NTR-NL 6669, EN 60947
  • American Bureau of Shipping, ABS, 20-HG1941090-PDA, EN 60947

Specifications

Ratings Per Iec/En

  • Ratings (note): Potential – ground
  • Nominal voltage (III/3): 250 V
  • Rated surge voltage (III/3): 4 kV
  • Rated current: 32 A
  • Ratings (note) 2: Potential – potential
  • Rated voltage (III/3) 2: 400 V
  • Rated surge voltage (III/3) 2: 6 kV
  • Rated current 2: 36 A
  • Legend (ratings): (III / 3) ≙ Overvoltage category III / Pollution degree 3

Connection 1

  • Connection technology: Push-in CAGE CLAMP®
  • Actuation type: Push-in || Operating tool
  • Connectable conductor materials: Copper
  • Nominal cross-section: 4 mm²
  • Solid conductor: 0.5 … 6 mm² / 20 … 10 AWG
  • Solid conductor; push-in termination: 1.5 … 6 mm² / 14 … 10 AWG
  • Fine-stranded conductor: 0.5 … 6 mm² / 20 … 10 AWG
  • Fine-stranded conductor; with insulated ferrule: 0.5 … 4 mm² / 20 … 12 AWG
  • Fine-stranded conductor; with ferrule; push-in termination: 1.5 … 4 mm² / 18 … 12 AWG
  • Note (conductor cross-section): Depending on the conductor characteristic, a conductor with a smaller cross-section can also be inserted via push-in termination.
  • Strip length: 11 … 13 mm / 0.43 … 0.51 inch
  • Wiring direction: Front-entry wiring

Physical Data

  • Width: 6.2 mm / 0.244 inch
  • Height: 123.9 mm / 4.878 inch
  • Depth from upper edge of DIN-rail: 41.7 mm / 1.642 inch

Mechanical Data

  • Potentialkennzeichnung: L/L/PE
  • Design: Angled
  • Mounting type: DIN-35 rail
  • Marking level: Center/side marking

Material Data

  • Color: Gray
  • Insulation material: Polyamide (PA66)
  • Flammability class per UL94: V0
  • Fire load: 0.367 MJ
  • Weight: 30.248 g

Commercial Data

  • Packaging type: Box
  • Country of origin Sales Organisation Germany: CN
  • GTIN: 4055143042253
  • Customs tariff number Sales Organisation Germany: 85369010000
: *
: *
: *
