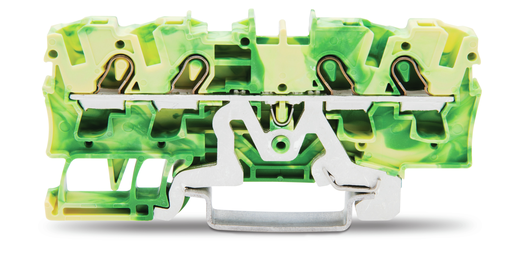

WAGO 2004-1407

2004-1407 WAGO 2004-1407

WAGO 2004-1407
Part # 2004-1407
Manufacturer WAGO
GTIN 4017332071833
Condition New
Price: $ 7.81
Qty
96 In stock
Order by 3PM MST (subject to stock availability) same day shipping available!
4 CONDUCTOR GRD RL MTD TERM BLK-TJS
Got questions? Send us a message or call us at 1-800-335-5111 for additional assistance.
4-Conductor earth terminal block suitable for Ex e applications

Features

Approvals

  • Underwriters Laboratories Inc., AEx, E185892, EN 60079
  • DEKRA Certification B.V., CSA, 1645435, C22.2 No. 158
  • UL International Germany GmbH, UL, E45172, UL 1059
  • DEKRA Certification B.V., CCA, NTR NL-7088, EN 60947
  • Physikalisch Technische Bundesanstalt (PTB), IECEx, IECEx PTB 05.0033 U Ex eb IIC Gb resp. Ex eb I Mb, IEC 60079
  • Det Norske Veritas, Germanischer Lloyd, DNV GL, TAE00001V2
  • Brjansker Zertifizierungsstelle, EAC, RU C-DE.AM02.B.00127/19, TP TC 012/2011
  • Physikalisch Technische Bundesanstalt (PTB), ATEx, PTB 05 ATEX 1095 UII 2 G Ex eb IIC Gb bzw. I M 2 Ex eb I Mb, EN 60079
  • CQST/CNEx, CCCEx, 2020312313000160, CNCA-C23-01
  • DEKRA Certification B.V., CCA, 2160584.10, EN 60947

Specifications

Connection 1

  • Connection technology: Push-in CAGE CLAMP®
  • Actuation type: Push-in || Operating tool
  • Connectable conductor materials: Copper
  • Nominal cross-section: 4 mm²
  • Solid conductor: 0.5 … 6 mm² / 20 … 10 AWG
  • Solid conductor; push-in termination: 1.5 … 6 mm² / 14 … 10 AWG
  • Fine-stranded conductor: 0.5 … 6 mm² / 20 … 10 AWG
  • Fine-stranded conductor; with insulated ferrule: 0.5 … 4 mm² / 20 … 12 AWG
  • Fine-stranded conductor; with ferrule; push-in termination: 1.5 … 4 mm² / 18 … 12 AWG
  • Note (conductor cross-section): Depending on the conductor characteristic, a conductor with a smaller cross-section can also be inserted via push-in termination.
  • Strip length: 11 … 13 mm / 0.43 … 0.51 inch
  • Wiring direction: Front-entry wiring

Physical Data

  • Width: 6.2 mm / 0.244 inch
  • Height: 78.7 mm / 3.098 inch
  • Depth from upper edge of DIN-rail: 32.9 mm / 1.295 inch

Mechanical Data

  • Design: Horizontal type
  • Mounting type: DIN-35 rail
  • Marking level: Center/side marking

Material Data

  • Color: Green-yellow
  • Insulation material: Polyamide (PA66)
  • Flammability class per UL94: V0
  • Fire load: 0.174 MJ
  • Weight: 16.718 g

Commercial Data

  • Packaging type: Box
  • Country of origin Sales Organisation Germany: DE
  • GTIN: 4017332071833
  • Customs tariff number Sales Organisation Germany: 85369010000
: *
: *
: *
