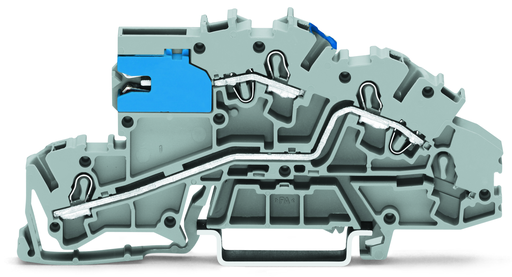

WAGO 2003-7640

2003-7640 WAGO 2003-7640

WAGO 2003-7640
Part # 2003-7640
Manufacturer WAGO
GTIN 4045454792695
Condition New
Price: $ 5.33

Please Contact Us for Stock Availability

Qty
Note: you must order at least 25 items
Order by 3PM MST (subject to stock availability) same day shipping available!
TOPJOB S MULTI INSTAL TRM BLK
Got questions? Send us a message or call us at 1-800-335-5111 for additional assistance.
Multilevel installation terminal block with n-disconnect slide link nt/l

Features

Approvals

  • DEKRA Certification B.V., CCA, NTR NL-7828, EN 60947
  • DEKRA Certification B.V., CCA, 71-113530, EN 60947

Specifications

Ratings Per Iec/En

  • Ratings (note): Potential – ground
  • Nominal voltage (III/3): 250 V
  • Rated surge voltage (III/3): 4 kV
  • Rated current: 24 A
  • Ratings (note) 2: Potential – potential
  • Rated voltage (III/3) 2: 400 V
  • Rated surge voltage (III/3) 2: 6 kV
  • Rated current 2: 32 A
  • Legend (ratings): (III / 3) ≙ Overvoltage category III / Pollution degree 3

Connection 1

  • Connection technology: Push-in CAGE CLAMP®
  • Actuation type: Push-in || Operating tool
  • Connectable conductor materials: Copper
  • Nominal cross-section: 2.5 mm²
  • Solid conductor: 0.25 … 4 mm² / 22 … 12 AWG
  • Solid conductor; push-in termination: 0.75 … 4 mm² / 18 … 12 AWG
  • Fine-stranded conductor: 0.25 … 4 mm² / 22 … 12 AWG
  • Fine-stranded conductor; with insulated ferrule: 0.25 … 2.5 mm² / 22 … 14 AWG
  • Fine-stranded conductor; with ferrule; push-in termination: 1 … 2.5 mm² / 18 … 14 AWG
  • Note (conductor cross-section): Depending on the conductor characteristic, a conductor with a smaller cross-section can also be inserted via push-in termination.
  • Strip length: 10 … 12 mm / 0.39 … 0.47 inch
  • Wiring direction: Front-entry wiring

Physical Data

  • Width: 5.2 mm / 0.205 inch
  • Height: 96 mm / 3.78 inch
  • Depth from upper edge of DIN-rail: 42.3 mm / 1.665 inch

Mechanical Data

  • Potentialkennzeichnung: NT/L
  • Design: Angled
  • Mounting type: DIN-35 rail
  • Marking level: Center/side marking

Material Data

  • Color: Gray
  • Insulation material: Polyamide (PA66)
  • Flammability class per UL94: V0
  • Fire load: 0.252 MJ
  • Weight: 14.165 g

Commercial Data

  • Packaging type: Box
  • Country of origin Sales Organisation Germany: DE
  • GTIN: 4045454792695
  • Customs tariff number Sales Organisation Germany: 85365080900
: *
: *
: *
