WAGO 2002-3221/1000-413

2002-3221/1000-413 WAGO 2002-3221/1000-413

WAGO 2002-3221/1000-413
Part # 2002-3221/1000-413
Manufacturer WAGO
GTIN 4045454375768
Condition New
Price: $ 14.68

Please Contact Us for Stock Availability

Qty
Order by 3PM MST (subject to stock availability) same day shipping available!
TOPJOB S TRI-DECK LED BLK 2,5MM GRAY
Got questions? Send us a message or call us at 1-800-335-5111 for additional assistance.

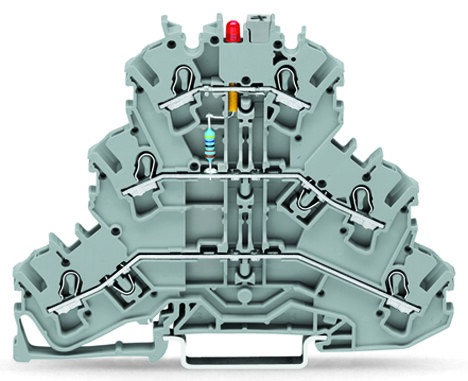

Triple deck LED terminal block DC 24 V with red led

Specifications

Ratings Per Iec/En

  • Ratings per: IEC/EN 60947-7-1
  • Rated current: 0.025 A

Ratings Per Ul

  • Approvals per: UL 1059
  • Rated voltage UL (Use Group B): 600 V
  • Rated current UL (Use Group B): 20 A
  • Rated voltage UL (Use Group C): 600 V
  • Rated current UL (Use Group C): 20 A

Connection 1

  • Connection technology: Push-in CAGE CLAMP®
  • Actuation type: Push-in || Operating tool
  • Connectable conductor materials: Copper
  • Nominal cross-section: 2.5 mm²
  • Solid conductor: 0.25 … 4 mm² / 22 … 12 AWG
  • Solid conductor; push-in termination: 0.75 … 4 mm² / 18 … 12 AWG
  • Fine-stranded conductor: 0.25 … 4 mm² / 22 … 12 AWG
  • Fine-stranded conductor; with insulated ferrule: 0.25 … 2.5 mm² / 22 … 14 AWG
  • Fine-stranded conductor; with ferrule; push-in termination: 1 … 2.5 mm² / 18 … 14 AWG
  • Note (conductor cross-section): Depending on the conductor characteristic, a conductor with a smaller cross-section can also be inserted via push-in termination.
  • Strip length: 10 … 12 mm / 0.39 … 0.47 inch
  • Wiring direction: Front-entry wiring

Physical Data

  • Width: 5.2 mm / 0.205 inch
  • Height: 93.3 mm / 3.673 inch
  • Depth from upper edge of DIN-rail: 69.5 mm / 2.736 inch

Mechanical Data

  • Design: Angled
  • Mounting type: DIN-35 rail
  • Marking level: Center/side marking

Material Data

  • Color: Gray
  • Insulation material: Polyamide (PA66)
  • Flammability class per UL94: V0
  • Fire load: 0.326 MJ
  • Weight: 17.600 g

Commercial Data

  • Packaging type: Box
  • Country of origin Sales Organisation Germany: DE
  • GTIN: 4045454375768
  • Customs tariff number Sales Organisation Germany: 85369010000
: *
: *
: *
