WAGO » Rail Mounted Terminal Blocks » Series 2002 » WAGO 2002-2214/1000-489

WAGO 2002-2214/1000-489

2002-2214/1000-489 WAGO 2002-2214/1000-489

WAGO 2002-2214/1000-489
Part # 2002-2214/1000-489
Manufacturer WAGO
GTIN 4045454375621
Condition New
Price: $ 10.54

Please Contact Us for Stock Availability

Qty
Order by 3PM MST (subject to stock availability) same day shipping available!
TOPJOB S DBL DECK TRM BLK CENTERMRKG
Got questions? Send us a message or call us at 1-800-335-5111 for additional assistance.

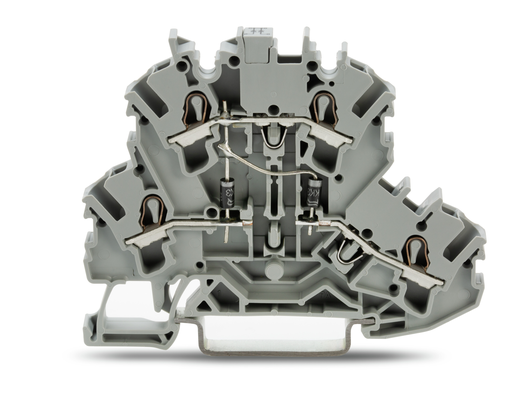

Double deck diode terminal block with 2 diodes 1 n 4007

Specifications

Ratings Per Iec/En

  • Ratings per: IEC/EN 60947-7-1
  • Rated current: 0.5 A

Connection 1

  • Connection technology: Push-in CAGE CLAMP®
  • Actuation type: Push-in || Operating tool
  • Connectable conductor materials: Copper
  • Nominal cross-section: 2.5 mm²
  • Solid conductor: 0.25 … 4 mm² / 22 … 12 AWG
  • Solid conductor; push-in termination: 0.75 … 4 mm² / 18 … 12 AWG
  • Fine-stranded conductor: 0.25 … 4 mm² / 22 … 12 AWG
  • Fine-stranded conductor; with insulated ferrule: 0.25 … 2.5 mm² / 22 … 14 AWG
  • Fine-stranded conductor; with ferrule; push-in termination: 1 … 2.5 mm² / 18 … 14 AWG
  • Note (conductor cross-section): Depending on the conductor characteristic, a conductor with a smaller cross-section can also be inserted via push-in termination.
  • Strip length: 10 … 12 mm / 0.39 … 0.47 inch
  • Wiring direction: Front-entry wiring

Physical Data

  • Width: 5.2 mm / 0.205 inch
  • Height: 69.7 mm / 2.744 inch
  • Depth from upper edge of DIN-rail: 51.7 mm / 2.035 inch

Mechanical Data

  • Design: Horizontal type
  • Mounting type: DIN-35 rail
  • Marking level: Center/side marking

Material Data

  • Color: Gray
  • Insulation material: Polyamide (PA66)
  • Flammability class per UL94: V0
  • Fire load: 0.234 MJ
  • Weight: 10.200 g

Commercial Data

  • Packaging type: Box
  • Country of origin Sales Organisation Germany: DE
  • GTIN: 4045454375621
  • Customs tariff number Sales Organisation Germany: 85369010000
: *
: *
: *
