WAGO 2002-1811/1000-541

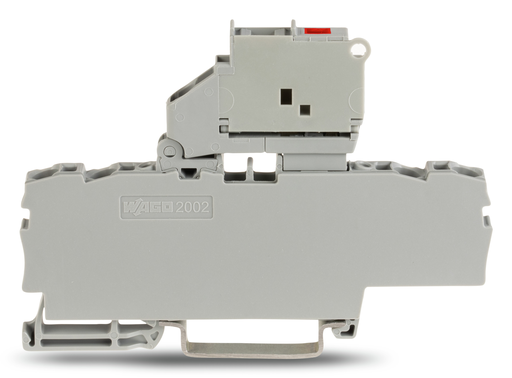

2002-1811/1000-541 WAGO 2002-1811/1000-541

WAGO 2002-1811/1000-541
Part # 2002-1811/1000-541
Manufacturer WAGO
GTIN 4045454790073
Condition New
Price: $ 18.12
Qty
13 In stock
Order by 3PM MST (subject to stock availability) same day shipping available!
4 COND TJS PVT FUSE TERM GREY 24VLED
Got questions? Send us a message or call us at 1-800-335-5111 for additional assistance.
4-conductor fused disconnect terminal block with pivoting fuse holder for miniature metric fuses 5 x 20 mm 12 - 30 V

Features

Approvals

  • DEKRA Certification B.V., CCA, 71-107687, EN 60947
  • Det Norske Veritas, Germanischer Lloyd, DNV GL, TAE00001V2
  • Underwriters Laboratories Inc., AEx, E185892, UL 60079
  • KIWA Netherlands B.V., IECEx, IECEx KIWA 17.0014U Ex ec IIC Gc, EN 60079
  • Underwriters Laboratories Inc., UL, E45172, UL 1059
  • CQST/CNEx, CCCEx, 2020312313000180, CNCA-C23-01
  • American Bureau of Shipping, ABS, 20-HG1941090-PDA, EN 60947
  • DEKRA Certification B.V., CCA, NTR NL 7730, EN 60947
  • DEKRA EXAM GmbH, ATEX, KIWA 17ATEX0030 U, EN 60079

Specifications

Ratings Per Iec/En

  • Ratings per: IEC/EN 60947-7-3
  • Ratings (note): Electrical ratings are given by the fuse and blown fuse indication.
  • Nominal voltage (III/3): 250 V
  • Rated surge voltage (III/3): 6 kV
  • Rated current: 6.3 A
  • Note on rated current 1: Leakage current in case of a blown fuse: LED 2 mA
  • Operation status indicator: 12 … 30 V
  • Legend (ratings): (III / 3) ≙ Overvoltage category III / Pollution degree 3

Ratings Per Ul

  • Approvals per: UL 1059
  • Rated voltage UL (Use Group B): 30 V
  • Rated current UL (Use Group B): 10 A
  • Rated voltage UL (Use Group C): 30 V
  • Rated current UL (Use Group C): 10 A
  • Rated voltage UL (Use Group D): 30 V
  • Rated current UL (Use Group D): 10 A

Ratings Per Csa

  • Approvals per: C22.2 No 158

Ex Information

  • Ratings per: ATEX: KIWA 17 ATEX 0030 U / IECEx: KIWA 17.0014U (Ex ec IIC Gc)
  • Rated voltage EN (Ex e II): 24 V
  • Rated current (Ex e II): 6.3 A

Connection 1

  • Connection technology: Push-in CAGE CLAMP®
  • Actuation type: Push-in || Operating tool
  • Connectable conductor materials: Copper
  • Nominal cross-section: 2.5 mm²
  • Solid conductor: 0.25 … 4 mm² / 22 … 12 AWG
  • Solid conductor; push-in termination: 0.75 … 4 mm² / 18 … 12 AWG
  • Fine-stranded conductor: 0.25 … 4 mm² / 22 … 12 AWG
  • Fine-stranded conductor; with insulated ferrule: 0.25 … 2.5 mm² / 22 … 14 AWG
  • Fine-stranded conductor; with ferrule; push-in termination: 1 … 2.5 mm² / 18 … 14 AWG
  • Note (conductor cross-section): Depending on the conductor characteristic, a conductor with a smaller cross-section can also be inserted via push-in termination.
  • Strip length: 10 … 12 mm / 0.39 … 0.47 inch
  • Wiring direction: Front-entry wiring

Physical Data

  • Width: 6.2 mm / 0.244 inch
  • Height: 87.5 mm / 3.445 inch
  • Depth from upper edge of DIN-rail: 57.6 mm / 2.268 inch

Mechanical Data

  • Design: Horizontal type
  • Mounting type: DIN-35 rail
  • Marking level: Center/side marking
  • Art der Sicherung: Cylindrical fuse 5 x 20 mm

Material Data

  • Color: Gray
  • Insulation material: Polyamide (PA66)
  • Flammability class per UL94: V0
  • Fire load: 0.341 MJ
  • Weight: 16.640 g

Commercial Data

  • Packaging type: Box
  • Country of origin Sales Organisation Germany: CN
  • GTIN: 4045454790073
  • Customs tariff number Sales Organisation Germany: 85369095000
: *
: *
: *
