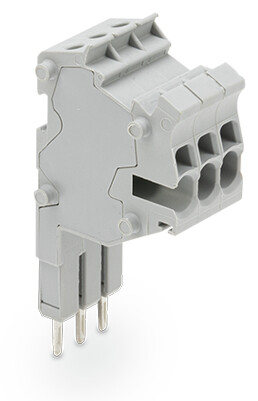

Features

Approvals

• Det Norske Veritas, Germanischer Lloyd, DNV GL, TAE00001V2
• DEKRA Certification B.V., CCA, NTR NL 6746, EN 61984
• DEKRA Certification B.V., CCA, 2135410.01, EN 61984

Specifications

Notes

• Safety information 1: According to EN 61984, pluggable connectors without current interrupting capacity must not be mated or unmated when live or under load.

Ratings Per Iec/En

• Nominal voltage (III/3): 500 V
• Rated surge voltage (III/3): 6 kV
• Rated current: 18 A
• Legend (ratings): (III / 3) ≙ Overvoltage category III / Pollution degree 3

Connection 1

• Connection technology: Push-in CAGE CLAMP®
• Actuation type: Operating tool
• Nominal cross-section: 1.5 mm²
• Solid conductor: 0.25 … 2.5 mm² / 22 … 14 AWG
• Solid conductor; push-in termination: 0.75 … 2.5 mm² / 18 … 14 AWG
• Fine-stranded conductor: 0.25 … 2.5 mm² / 22 … 14 AWG
• Fine-stranded conductor; with insulated ferrule: 0.25 … 1.5 mm² / 22 … 16 AWG
• Fine-stranded conductor; with ferrule; push-in termination: 0.75 … 1.5 mm² / 18 … 16 AWG
• Note (conductor cross-section): Depending on the conductor characteristic, a conductor with a smaller cross-section can also be inserted via push-in termination.
• Strip length: 9 … 11 mm / 0.35 … 0.43 inch
• Pole No.: 2
• Wiring direction: Side-entry wiring

Physical Data

• Width: 8.4 mm / 0.331 inch
• Module width: 4.2 mm / 0.165 inch

Mechanical Data

• Marking level: Center/side marking

Material Data

• Color: Gray
• Insulation material: Polyamide (PA66)
• Fire load: 0.008 MJ
• Weight: 4.400 g

Commercial Data

• Packaging type: Box
• Country of origin Sales Organisation Germany: DE
• GTIN: 4045454178246
• Customs tariff number Sales Organisation Germany: 85366990990
