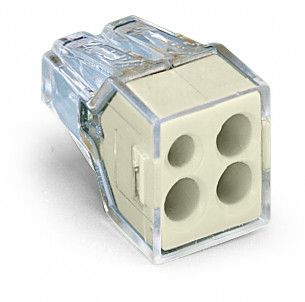

WAGO 773-124

773-124 WAGO 773-124

WAGO 773-124
Part # 773-124
Manufacturer WAGO
Condition New
Price: $ 0.25
Qty
Note: you must order at least 100 items
7150 In stock
Order by 3PM MST (subject to stock availability) same day shipping available!
WALL-NUTS® Push-wire connector for junction boxes 4-conductor terminal block
Got questions? Send us a message or call us at 1-800-335-5111 for additional assistance.
WALL-NUTS® Push-wire connector for junction boxes 4-conductor terminal block - PRICE IS FOR 100PCS

Features

Approvals

  • UL International Germany GmbH, UL, E69654, UL 486C
  • DEKRA Certification B.V., CSA, 15411 (LR46759), C22.2

Specifications

Notes

  • Safety information 1: In grounded power lines

Ratings Per Iec/En

  • Ratings per: IEC/EN 60664-1
  • Nominal voltage (II/2): 400 V
  • Rated surge voltage (II/2): 4 kV
  • Rated current: 24 A
  • Legend (ratings): (II / 2) ≙ Overvoltage category II / Pollution degree 2

Connection 1

  • Connection technology: PUSH WIRE®
  • Actuation type: Push-in
  • Connectable conductor materials: Copper || Aluminum
  • Anschließbare Leiterwerkstoffe Hinweis: WAGO spring clamp terminal blocks are suitable for solid aluminum conductors up to 4 mm²/12 AWG if WAGO “Alu-Plus” Contact Paste is used for termination.“Alu-Plus” Contact Paste Advantages:Automatically destroys the oxide film during clamping.Prevents fresh oxidation at the clamping point.Prevents electrolytic corrosion between aluminum and copper conductors (in the same terminal block).Provides long-term protection against corrosion.For spring clamp connections with PUSH WIRE® connection technology, WAGO recommends that the aluminum conductor first be cleaned and then immediately inserted into the clamping unit filled with “Alu-Plus” contact paste.It is also possible to apply WAGO “Alu-Plus” additionally on the whole surface of the aluminum conductor before termination.Please note that the nominal currents must be adapted to the reduced conductivity of the aluminum conductors::2.5 mm² = 16 A4 mm² = 22 A
  • Solid conductor: 0.75 … 2.5 mm² / 18 … 12 AWG
  • Stranded conductor: 1.5 … 2.5 mm² / 16 … 12 AWG
  • Fine-stranded conductor: 0.75 mm² / 18 AWG
  • Strip length: 12 mm / 0.47 inch
  • Wiring direction: Side-entry wiring

Physical Data

  • Width: 13 mm / 0.512 inch
  • Height: 13.1 mm / 0.516 inch
  • Depth: 19.5 mm / 0.768 inch

Material Data

  • Color: Multicoloured
  • Cover color: Light gray
  • Flammability class per UL94: V2
  • Fire load: 0.058 MJ
  • Weight: 2.772 g

Environmental Requirements

  • Surrounding air temperature (operation): 60 °C

Commercial Data

  • Packaging type: Box
  • Country of origin Sales Organisation Germany: DE
  • GTIN: 4044918397834
  • Customs tariff number Sales Organisation Germany: 85369010000
: *
: *
: *
