WAGO » Push Wire Connector » Series 243 » WAGO 243-808

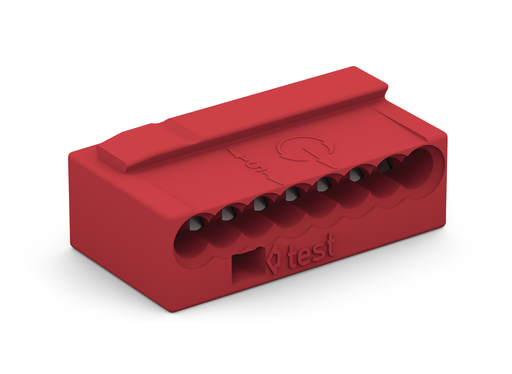

WAGO 243-808

243-808 WAGO 243-808

WAGO 243-808
Part # 243-808
Manufacturer WAGO
GTIN 4017332546515
Condition New
Price: $ 0.31
Qty
Note: you must order at least 50 items
350 In stock
Order by 3PM MST (subject to stock availability) same day shipping available!
MICRO PUSH-WIRE CONN-8 RED
Got questions? Send us a message or call us at 1-800-335-5111 for additional assistance.
Micro push-wire connector for junction boxes 8-conductor terminal block

Features

Approvals

  • Underwriters Laboratories Inc., UR, E45172, UL 1059
  • DEKRA Certification B.V., KEMA/KEUR, 71-112493, EN 60998
  • DEKRA Certification B.V., CCA, NTR NL 7812, EN 60998
  • Lloyds Register, LR, 04/20013 (E8), EN 60998
  • DEKRA Certification B.V., CSA, 70048857, C22.2
  • American Bureau of Shipping, ABS, 18-HG1755093-PDA

Specifications

Ratings Per Iec/En

  • Ratings per: EN 60664
  • Nominal voltage (II/2): 100 V
  • Rated surge voltage (II/2): 1.5 kV
  • Rated current: 6 A
  • Legend (ratings): (II / 2) ≙ Overvoltage category II / Pollution degree 2

Connection 1

  • Connection technology: PUSH WIRE®
  • Actuation type: Push-in
  • Connectable conductor materials: Copper
  • Solid conductor: 22 … 20 AWG
  • Conductor diameter: 0.6 … 0.8 mm / 22 … 20 AWG
  • Conductor diameter (note): When using conductors of the same diameter, Ø 0.5 mm / 24 AWG or Ø 1 mm / 18 AWG are also possible.
  • Strip length: 5 … 6 mm / 0.2 … 0.24 inch
  • Wiring direction: Side-entry wiring

Physical Data

  • Width: 18.4 mm / 0.724 inch
  • Height: 6.8 mm / 0.268 inch
  • Depth: 10 mm / 0.394 inch

Material Data

  • Color: Red
  • Cover color: Light gray
  • Fire load: 0.019 MJ
  • Weight: 1.390 g

Environmental Requirements

  • Surrounding air temperature (operation): 60 °C
  • Continuous operating temperature: 105 °C

Commercial Data

  • Packaging type: Box
  • Country of origin Sales Organisation Germany: DE
  • GTIN: 4044918502795
  • Customs tariff number Sales Organisation Germany: 85369010000
: *
: *
: *
