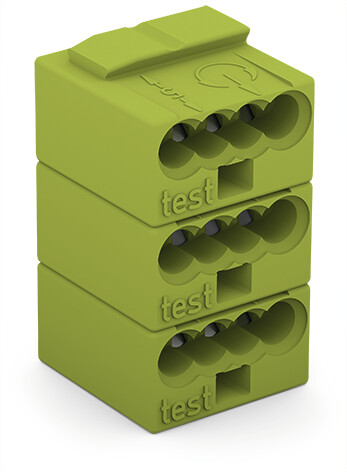

WAGO 243-742

243-742 WAGO 243-742

WAGO 243-742
Part # 243-742
Manufacturer WAGO
GTIN 4044918441841
Condition New
Price: $ 0.49

Please Contact Us for Stock Availability

Qty
Note: you must order at least 50 items
Order by 3PM MST (subject to stock availability) same day shipping available!
MODULAR F-PCB CONN STRIPS
Got questions? Send us a message or call us at 1-800-335-5111 for additional assistance.
Female PCB connector strip with test slot 2 pole

Features

  • 4-conductor female connector with PUSH WIRE® connection
  • Can be assembled to connector strips via dovetail joints
  • Push-in termination of solid conductors
  • Four entries for power supply and potential distribution
  • Quick and easy PCB replacement, without disrupting looped-through potentials

Approvals

  • American Bureau of Shipping, ABS, 18-HG1755093-PDA
  • DEKRA Certification B.V., KEMA/KEUR, 71-112493, EN 60998
  • Underwriters Laboratories Inc., UR, E45172, UL 1059
  • DEKRA Certification B.V., CSA, 70048857, C22.2
  • DEKRA Certification B.V., CCA, NTR NL 7812, EN 60998

Specifications

Notes

  • Variants:: Other pole numbers || Other colors || Mixed-color PCB connector strips || Direct marking || Other versions (or variants) can be requested from WAGO Sales or configured at https://configurator.wago.com/

Ratings Per Iec/En

  • Ratings per: IEC/EN 60664-1
  • Nominal voltage (III/3): 250 V
  • Rated surge voltage (III/3): 4 kV
  • Rated voltage (III/2): 320 V
  • Rated surge voltage (III/2): 4 kV
  • Nominal voltage (II/2): 630 V
  • Rated surge voltage (II/2): 4 kV
  • Rated current: 6 A
  • Legend (ratings): (III / 2) ≙ Overvoltage category III / Pollution degree 2

Ratings Per Ul

  • Approvals per: UL 1059
  • Rated voltage UL (Use Group B): 150 V
  • Rated current UL (Use Group B): 7 A
  • Rated voltage UL (Use Group D): 150 V
  • Rated current UL (Use Group D): 7 A

Ratings Per Csa

  • Approvals per: CSA
  • Rated voltage CSA (Use Group B): 150 V
  • Rated current CSA (Use Group B): 7 A
  • Rated voltage CSA (Use Group D): 150 V
  • Rated current CSA (Use Group D): 7 A

Connection 1

  • Connection technology: PUSH WIRE®
  • Connectable conductor materials: Copper
  • Solid conductor: 0.5 … 1 mm² / 24 … 18 AWG
  • Conductor diameter: 0.5 … 1 mm / 24 … 18 AWG
  • Strip length: 5 … 6 mm / 0.2 … 0.24 inch
  • Conductor connection direction to PCB: 0 °
  • Pole No.: 2

Physical Data

  • Pin spacing: 5.75 mm / 0.226 inch
  • Width: 11.5 mm / 0.453 inch
  • Height: 10 mm / 0.394 inch
  • Depth: 10.5 mm / 0.413 inch
  • Solder pin length: 4.5 mm
  • Solder pin diameter: 1 mm
  • Drilled hole diameter with tolerance: 1.2 (-0.05 … +0.05) mm

Plug-In Connection

  • Contact type (pluggable connector): Female connector/socket
  • Connector (connection type): For PCB
  • Mating direction to the PCB: 90 °

Material Data

  • Color: Light green
  • Material group: I
  • Insulation material: Polyamide (PA66)
  • Flammability class per UL94: V0
  • Clamping spring material: Copper alloy
  • Contact material: Electrolytic copper (ECu)
  • Contact plating: Tin-plated
  • Fire load: 0.024 MJ
  • Weight: 1.494 g

Environmental Requirements

  • Limit temperature range: -60 … +105 °C

Commercial Data

  • Packaging type: Box
  • Country of origin Sales Organisation Germany: DE
  • GTIN: 4044918441841
  • Customs tariff number Sales Organisation Germany: 85369010000
: *
: *
: *
