WAGO 221-485

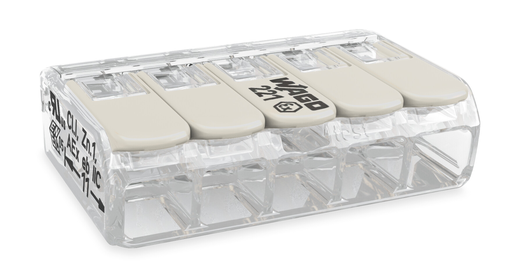

221-485 WAGO 221-485

WAGO 221-485
Part # 221-485
Manufacturer Wago
GTIN 4055143837330
Condition New
Price: $ 0.91
Qty
87 In stock
Order by 3PM MST (subject to stock availability) same day shipping available!
COMPACT Splicing Connector; for all conductor types; for Ex e applications; max. 4 mm²; 5-conductor; with levers; transparent housing; Operating temperature (max.): 105 °C; 4,00 mm²; transparent
Got questions? Send us a message or call us at 1-800-335-5111 for additional assistance.
COMPACT Splicing Connector; for all conductor types; for Ex e applications; max. 4 mm²; 5-conductor; with levers; transparent housing; Operating temperature (max.): 105 °C; 4,00 mm²; transparent

Features

  • Ease of use – pull the lever up, insert a conductor and push the lever back down
  • Available as 2-, 3- and 5-wire connectors
  • Easily terminate conductors from 0.14 to 4 mm²
  • Connect solid, stranded and fine-stranded conductors
  • Time savings for installers and device manufacturers
  • Quickly install devices with higher levels of power consumption
  • Safely install long cable runs with larger conductor cross sections
  • Mounting carrier for installation conforms to standards
  • Working voltages of 275 V or 440 V
  • Custom carriers are possible
  • ATEX (Ex 2 II G), IECEx (Ex eb IIC Gb) Zone 1, 2
  • IECEX (Ex eb IIC Gb), American Ex (AEx eb IICGb) / Class 1, Zone 1

Approvals

  • DEKRA Certification B.V., CCA, NTR NL-7827, EN 60998
  • Lloyds Register, LR, 04/20013 (E8), EN 60998
  • Underwriters Laboratories Inc., AEx, E185892, UL 60079
  • Physikalisch Technische Bundesanstalt, ATEX, PTB 18 ATEX 1019 UII 2 G Ex eb IIC Gb bzw. I M 2 Ex eb I Mb, IEC 60079-0
  • Underwriters Laboratories Inc., UL, E69654, UL 486C
  • DEKRA Certification B.V., KEMA/KEUR, 71-113253, EN 60998
  • Physikalisch Technische Bundesanstalt, IECEx, IECEx PTB 18.0045U Ex eb IIC Gb or Ex eb I Mb, IEC 60079-0
  • CQST/CNEx, CCCEx, 2020312313000184, CNCA-C23-01
  • Brjansker Zertifizierungsstelle, EAC, RU C-DE.AM02.B.00127/19, TP TC 012/2011

Specifications

Notes

  • Safety information 1: The permissible operating voltage of the connector with carrier (440 V or 275 V) depends on the mounting type.
  • Safety information 2: Only approved in conjunction with a mounting carrier (221-501). Other carriers are possible, see certificate/file. The connectors must be installed in an enclosure meeting the requirements of a recognized protection type per EN 60079-0, Section 1 or EN 60079-31. When installing the connectors in an enclosure of protection type “eb” (increased safety) per EN 60079-7, the clearances and creepage distances of Table 2 for this standard must be observed. See point 1 for the use of accessories. The connectors can be used both in Group II and Group I, as the standard requirements are identical in this case.The use of these components requires a new assessment by a notified certification agency.

Ratings Per Iec/En

  • Ratings per: IEC/EN 60079-7

Ratings Per Ul

  • Approvals per: UL 60079
  • Rated voltage UL (Use Group C): 440 V
  • Rated current UL (Use Group C): 20 A

Ex Information

  • Ratings per: ATEX: PTB 18 ATEX 1019 U / IECEx: PTB 18.0045U (Ex eb IIC Gb)
  • Rated voltage EN (Ex e II): 440 V
  • Rated current (Ex e II): 32 A

Connection 1

  • Connection technology: CAGE CLAMP®
  • Actuation type: Lever
  • Connectable conductor materials: Copper
  • Nominal cross-section: 4 mm²
  • Solid conductor: 0.2 … 4 mm² / 24 … 12 AWG
  • Stranded conductor: 0.2 … 4 mm² / 24 … 12 AWG
  • Fine-stranded conductor: 0.14 … 4 mm² / 24 … 12 AWG
  • Strip length: 11 mm / 0.43 inch
  • Wiring direction: Side-entry wiring

Physical Data

  • Width: 30 mm / 1.181 inch
  • Height: 8.6 mm / 0.327 inch
  • Depth: 18.8 mm / 0.732 inch

Material Data

  • Color: Transparent
  • Flammability class per UL94: V2
  • Fire load: 0.055 MJ
  • Color of actuator: Light gray
  • Weight: 4.378 g

Environmental Requirements

  • Continuous operating temperature: -55 … +105 °C

Commercial Data

  • Packaging type: Box
  • Country of origin Sales Organisation Germany: DE
  • GTIN: 4055143837330
  • Customs tariff number Sales Organisation Germany: 85369010000
: *
: *
: *
