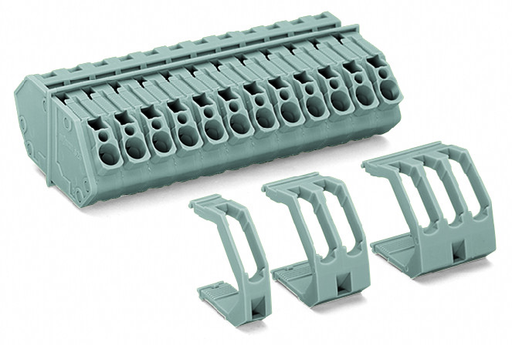

Features

• Feedthrough terminal blocks with screwdriver-actuated CAGE CLAMP® on both sides
• Easy, tool-free installation
• Direct ground contact with enclosure/panel
• Test ports available on both sides

Approvals

• Det Norske Veritas, Germanischer Lloyd, DNV GL, TAE00001V2
• UL International Germany GmbH, UL, E45172, UL 1059
• Bureau Veritas S.A., BV, 07436/F0 BV, EN 60947
• American Bureau of Shipping, ABS, 20-HG1941090-PDA, EN 60947
• DEKRA Certification B.V., CCA, 2160584.32
• Lloyds Register, LR, 96/20035 (E5), IEC 61984
• DEKRA Certification B.V., CCA, NTR NL-7136

Specifications

Notes

• Variants:: Other pole numbers || Other colors || Direct marking || Other versions (or variants) can be requested from WAGO Sales or configured at https://configurator.wago.com/

Ratings Per Iec/En

• Ratings per: IEC/EN 60664-1
• Ratings (note): Suitable for neutral-grounded, three-phase, 4-wire systems rated at 400 V (conductor-to-conductor) per IEC/EN 60664-1.
• Nominal voltage (III/3): 320 V
• Rated surge voltage (III/3): 4 kV
• Rated voltage (III/2): 320 V
• Rated surge voltage (III/2): 4 kV
• Nominal voltage (II/2): 630 V
• Rated surge voltage (II/2): 4 kV
• Rated current: 32 A
• Legend (ratings): (III / 2) ≙ Overvoltage category III / Pollution degree 2

Ratings Per Ul

• Approvals per: UL 1059
• Rated voltage UL (Use Group B): 300 V
• Rated current UL (Use Group B): 20 A
• Rated voltage UL (Use Group C): 150 V
• Rated current UL (Use Group C): 20 A
• Rated voltage UL (Use Group D): 300 V
• Rated current UL (Use Group D): 10 A

Ratings Per Csa

• Approvals per: CSA
• Rated voltage CSA (Use Group B): 300 V
• Rated current CSA (Use Group B): 20 A
• Rated voltage CSA (Use Group C): 150 V
• Rated current CSA (Use Group C): 20 A
• Rated voltage CSA (Use Group D): 300 V
• Rated current CSA (Use Group D): 10 A

Connection 1

• Connection technology: CAGE CLAMP®
• Actuation type: Operating tool
• Solid conductor: 0.08 … 4 mm² / 28 … 12 AWG
• Fine-stranded conductor: 0.08 … 4 mm² / 28 … 12 AWG
• Fine-stranded conductor; with insulated ferrule: 0.25 … 2.5 mm²
• Fine-stranded conductor; with uninsulated ferrule: 0.25 … 2.5 mm²
• Strip length: 9 … 10 mm / 0.35 … 0.39 inch
• Pole No.: 5

Physical Data

• Pin spacing: 7 mm / 0.276 inch
• Width: 36.5 mm / 1.437 inch
• Height: 23.55 mm / 0.927 inch
• Depth: 42.5 mm / 1.673 inch

Mechanical Data

• Mounting type: Locking claw || Feed-through mounting

Material Data

• Color: Gray
• Material group: I
• Insulation material: Polyamide (PA66)
• Flammability class per UL94: V0
• Clamping spring material: Chrome nickel spring steel (CrNi)
• Contact material: Electrolytic copper (ECu)
• Contact plating: Tin-plated
• Fire load: 0.534 MJ
• Weight: 29.000 g

Environmental Requirements

• Limit temperature range: -60 … +105 °C

Commercial Data

• Packaging type: Box
• Country of origin Sales Organisation Germany: DE
• GTIN: 4044918532754
• Customs tariff number Sales Organisation Germany: 85369010000
