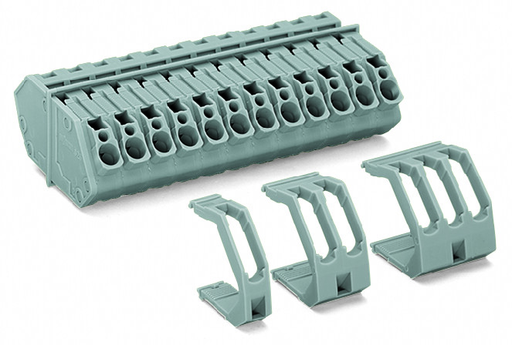

WAGO 826-162

826-162 WAGO 826-162

WAGO 826-162
Part # 826-162
Manufacturer WAGO
GTIN 4044918532679
Condition New
Price: $ 7.17
Qty
5 In stock
Order by 3PM MST (subject to stock availability) same day shipping available!
MOD HIGH CURRENT THROUGH TB
Got questions? Send us a message or call us at 1-800-335-5111 for additional assistance.
Terminal block including end plate and snap-on locking cover 2 pole

Features

  • Feedthrough terminal blocks with screwdriver-actuated CAGE CLAMP® on both sides
  • Easy, tool-free installation
  • Direct ground contact with enclosure/panel
  • Test ports available on both sides

Approvals

  • Bureau Veritas S.A., BV, 07436/F0 BV, EN 60947
  • DEKRA Certification B.V., CCA, 2160584.32
  • UL International Germany GmbH, UL, E45172, UL 1059
  • Lloyds Register, LR, 96/20035 (E5), IEC 61984
  • Det Norske Veritas, Germanischer Lloyd, DNV GL, TAE00001V2
  • American Bureau of Shipping, ABS, 20-HG1941090-PDA, EN 60947
  • DEKRA Certification B.V., CCA, NTR NL-7136

Specifications

Notes

  • Variants:: Other pole numbers || Other colors || Direct marking || Other versions (or variants) can be requested from WAGO Sales or configured at https://configurator.wago.com/

Ratings Per Iec/En

  • Ratings per: IEC/EN 60664-1
  • Ratings (note): Suitable for neutral-grounded, three-phase, 4-wire systems rated at 400 V (conductor-to-conductor) per IEC/EN 60664-1.
  • Nominal voltage (III/3): 320 V
  • Rated surge voltage (III/3): 4 kV
  • Rated voltage (III/2): 320 V
  • Rated surge voltage (III/2): 4 kV
  • Nominal voltage (II/2): 630 V
  • Rated surge voltage (II/2): 4 kV
  • Rated current: 32 A
  • Legend (ratings): (III / 2) ≙ Overvoltage category III / Pollution degree 2

Ratings Per Ul

  • Approvals per: UL 1059
  • Rated voltage UL (Use Group B): 300 V
  • Rated current UL (Use Group B): 20 A
  • Rated voltage UL (Use Group C): 150 V
  • Rated current UL (Use Group C): 20 A
  • Rated voltage UL (Use Group D): 300 V
  • Rated current UL (Use Group D): 10 A

Ratings Per Csa

  • Approvals per: CSA
  • Rated voltage CSA (Use Group B): 300 V
  • Rated current CSA (Use Group B): 20 A
  • Rated voltage CSA (Use Group C): 150 V
  • Rated current CSA (Use Group C): 20 A
  • Rated voltage CSA (Use Group D): 300 V
  • Rated current CSA (Use Group D): 10 A

Connection 1

  • Connection technology: CAGE CLAMP®
  • Actuation type: Operating tool
  • Solid conductor: 0.08 … 4 mm² / 28 … 12 AWG
  • Fine-stranded conductor: 0.08 … 4 mm² / 28 … 12 AWG
  • Fine-stranded conductor; with insulated ferrule: 0.25 … 2.5 mm²
  • Fine-stranded conductor; with uninsulated ferrule: 0.25 … 2.5 mm²
  • Strip length: 9 … 10 mm / 0.35 … 0.39 inch
  • Pole No.: 2

Physical Data

  • Pin spacing: 7 mm / 0.276 inch
  • Width: 15.5 mm / 0.61 inch
  • Height: 23.55 mm / 0.927 inch
  • Depth: 42.5 mm / 1.673 inch

Mechanical Data

  • Mounting type: Locking claw || Feed-through mounting

Material Data

  • Color: Gray
  • Material group: I
  • Insulation material: Polyamide (PA66)
  • Flammability class per UL94: V0
  • Clamping spring material: Chrome nickel spring steel (CrNi)
  • Contact material: Electrolytic copper (ECu)
  • Contact plating: Tin-plated
  • Fire load: 0.226 MJ
  • Weight: 12.200 g

Environmental Requirements

  • Limit temperature range: -60 … +105 °C

Commercial Data

  • Packaging type: Box
  • Country of origin Sales Organisation Germany: DE
  • GTIN: 4044918532679
  • Customs tariff number Sales Organisation Germany: 85369010000
: *
: *
: *
