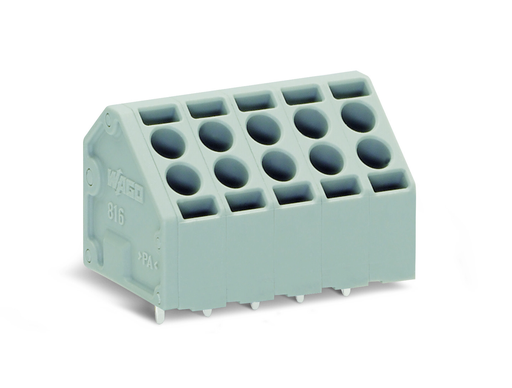

WAGO 816-104

816-104 WAGO 816-104

WAGO 816-104
Part # 816-104
Manufacturer WAGO
GTIN 4045454732097
Condition New
Price: $ 5.11

Please Contact Us for Stock Availability

Qty
Order by 3PM MST (subject to stock availability) same day shipping available!
2-CONDUCTOR PCB TRM STRIP 4-P 5MM
Got questions? Send us a message or call us at 1-800-335-5111 for additional assistance.
2-Conductor PCB terminal strip 1 solder pin / pole 4 pole

Features

  • Two-conductor terminal strips with screwdriver actuation and Push-in CAGE CLAMP® connection
  • Double entries for supply and power distribution
  • Simple, reliable connection via clamping units featuring individual operating slots
  • Simple, push-in termination of solid and ferruled conductors

Approvals

  • DEKRA Certification B.V., CSA, 1132097, C22.2
  • DEKRA Certification B.V., CCA, NTR NL 7057, EN 60947
  • DEKRA Certification B.V., CCA, 2158696.01, EN 60947
  • Underwriters Laboratories Inc., UR, E45172, UL 1059

Specifications

Notes

  • Variants:: Other pole numbers || Other colors || Mixed-color PCB connector strips || Direct marking || Other versions (or variants) can be requested from WAGO Sales or configured at https://configurator.wago.com/

Ratings Per Iec/En

  • Ratings per: IEC/EN 60664-1
  • Nominal voltage (III/3): 320 V
  • Rated surge voltage (III/3): 4 kV
  • Rated voltage (III/2): 320 V
  • Rated surge voltage (III/2): 4 kV
  • Nominal voltage (II/2): 630 V
  • Rated surge voltage (II/2): 4 kV
  • Rated current: 14 A
  • Legend (ratings): (III / 2) ≙ Overvoltage category III / Pollution degree 2

Ratings Per Ul

  • Approvals per: UL 1059
  • Rated voltage UL (Use Group B): 300 V
  • Rated current UL (Use Group B): 10 A
  • Rated voltage UL (Use Group D): 300 V
  • Rated current UL (Use Group D): 10 A

Ratings Per Csa

  • Approvals per: CSA
  • Rated voltage CSA (Use Group B): 300 V
  • Rated current CSA (Use Group B): 8 A
  • Rated voltage CSA (Use Group D): 300 V

Connection 1

  • Connection technology: Push-in CAGE CLAMP®
  • Actuation type: Operating tool
  • Solid conductor: 0.2 … 1.5 mm² / 24 … 16 AWG
  • Fine-stranded conductor: 0.2 … 1.5 mm² / 24 … 16 AWG
  • Fine-stranded conductor; with insulated ferrule: 0.2 … 1 mm²
  • Fine-stranded conductor; with uninsulated ferrule: 0.2 … 1.5 mm²
  • Strip length: 9 … 10 mm / 0.35 … 0.39 inch
  • Conductor connection direction to PCB: 45 °
  • Pole No.: 4

Physical Data

  • Pin spacing: 5 mm / 0.197 inch
  • Width: 21.5 mm / 0.846 inch
  • Height: 20.1 mm / 0.791 inch
  • Height from the surface: 16.6 mm / 0.654 inch
  • Depth: 17 mm / 0.669 inch
  • Solder pin length: 3.5 mm
  • Solder pin dimensions: 0.8 x 0.5 mm
  • Drilled hole diameter with tolerance: 1.1 (+0.1) mm

Pcb Contact

  • PCB Contact: THT
  • Solder pin arrangement: Over the entire terminal strip (in-line)
  • Number of solder pins per potential: 1

Material Data

  • Color: Gray
  • Material group: I
  • Insulation material: Polyamide (PA66)
  • Flammability class per UL94: V0
  • Clamping spring material: Chrome nickel spring steel (CrNi)
  • Contact material: Copper alloy
  • Contact plating: Tin-plated
  • Fire load: 0.096 MJ
  • Weight: 4.914 g

Environmental Requirements

  • Limit temperature range: -60 … +105 °C

Commercial Data

  • Packaging type: Box
  • Country of origin Sales Organisation Germany: CH
  • GTIN: 4045454732097
  • Customs tariff number Sales Organisation Germany: 85369010000
: *
: *
: *
