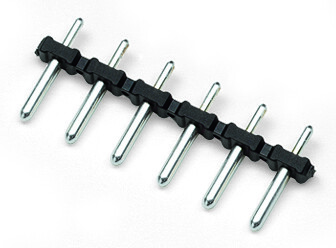

WAGO 806-908

806-908 WAGO 806-908

WAGO 806-908
Part # 806-908
Manufacturer WAGO
GTIN 4044918368124
Condition New
Price: $ 1.95

Please Contact Us for Stock Availability

Qty
Order by 3PM MST (subject to stock availability) same day shipping available!
SOLDER PIN STRIPS, CONNECTOR PIN 8-P
Got questions? Send us a message or call us at 1-800-335-5111 for additional assistance.
Solder pin strips connector pin 1.3 mm

Specifications

Connection 1

  • Pole No.: 8

Physical Data

  • Pin spacing: 5 mm / 0.197 inch
  • Width: 39.8 mm / 1.567 inch
  • Height: 12 mm / 0.472 inch
  • Depth: 2.7 mm / 0.106 inch
  • Solder pin length: 3.4 mm
  • Solder pin diameter: 1 mm
  • Drilled hole diameter with tolerance: 1.3 (+0.05) mm

Mechanical Data

  • Suitable: Pin spacing: 5 mm / 0.197 inch

Plug-In Connection

  • Contact type (pluggable connector): Male connector/plug
  • Connector (connection type): For PCB
  • Mating direction to the PCB: 90 °

Pcb Contact

  • PCB Contact: THT

Material Data

  • Color: Black
  • Fire load: 0.000 MJ
  • Weight: 1.100 g

Commercial Data

  • Packaging type: Box
  • Country of origin Sales Organisation Germany: DE
  • GTIN: 4044918368124
  • Customs tariff number Sales Organisation Germany: 85369010000
: *
: *
: *
