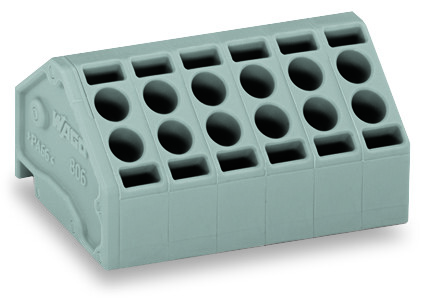

WAGO 806-109

806-109 WAGO 806-109

WAGO 806-109
Part # 806-109
Manufacturer WAGO
GTIN 4045454076993
Condition New
Price: $ 6.52

Please Contact Us for Stock Availability

Qty
Order by 3PM MST (subject to stock availability) same day shipping available!
F-CONN,9-POLES, GREY,24-16,300V/10A
Got questions? Send us a message or call us at 1-800-335-5111 for additional assistance.
Female connector strip for solder pin strip 9 pole

Features

  • 2-conductor female connector with Push-in CAGE CLAMP® connection and screwdriver-actuation
  • Push-in termination of solid and ferruled conductors
  • Double entries for power supply and potential distribution
  • Quick and easy PCB replacement, without disrupting looped-through potentials

Approvals

  • DEKRA Certification B.V., CCA, 71-112254, EN 60947-7-4
  • DEKRA Certification B.V., CCA, NTR NL-7808, EN 60947-7-4
  • DEKRA Certification B.V., CSA, 1132097, C22.2
  • Underwriters Laboratories Inc., UR, E45172, UL 1059

Specifications

Notes

  • Variants:: Other pole numbers || Other colors || Mixed-color PCB connector strips || Direct marking || Other versions (or variants) can be requested from WAGO Sales or configured at https://configurator.wago.com/

Ratings Per Iec/En

  • Ratings per: IEC/EN 60664-1
  • Nominal voltage (III/3): 250 V
  • Rated surge voltage (III/3): 4 kV
  • Rated voltage (III/2): 320 V
  • Rated surge voltage (III/2): 4 kV
  • Nominal voltage (II/2): 630 V
  • Rated surge voltage (II/2): 4 kV
  • Rated current: 10 A
  • Legend (ratings): (III / 2) ≙ Overvoltage category III / Pollution degree 2

Ratings Per Ul

  • Approvals per: UL 1059
  • Rated voltage UL (Use Group B): 300 V
  • Rated current UL (Use Group B): 10 A
  • Rated voltage UL (Use Group D): 300 V
  • Rated current UL (Use Group D): 10 A

Ratings Per Csa

  • Approvals per: CSA
  • Rated voltage CSA (Use Group B): 300 V
  • Rated current CSA (Use Group B): 10 A

Connection 1

  • Connection technology: Push-in CAGE CLAMP®
  • Actuation type: Operating tool
  • Solid conductor: 0.2 … 1.5 mm² / 24 … 16 AWG
  • Fine-stranded conductor: 0.2 … 1.5 mm² / 24 … 16 AWG
  • Fine-stranded conductor; with insulated ferrule: 0.25 … 1 mm²
  • Fine-stranded conductor; with uninsulated ferrule: 0.25 … 1 mm²
  • Strip length: 9 … 10 mm / 0.35 … 0.39 inch
  • Conductor connection direction to PCB: 45 °
  • Pole No.: 9

Physical Data

  • Pin spacing: 5 mm / 0.197 inch
  • Width: 46.5 mm / 1.831 inch
  • Height: 16.25 mm / 0.64 inch
  • Depth: 19.8 mm / 0.78 inch
  • Solder pin diameter: 1 mm

Plug-In Connection

  • Contact type (pluggable connector): Female connector/socket
  • Connector (connection type): For PCB
  • Mating direction to the PCB: 90 °

Material Data

  • Color: Gray
  • Material group: I
  • Insulation material: Polyamide (PA66)
  • Flammability class per UL94: V0
  • Clamping spring material: Chrome nickel spring steel (CrNi)
  • Contact material: Copper alloy
  • Contact plating: Tin-plated
  • Fire load: 0.224 MJ
  • Weight: 11.345 g

Environmental Requirements

  • Limit temperature range: -60 … +105 °C

Commercial Data

  • Packaging type: Box
  • Country of origin Sales Organisation Germany: PL
  • GTIN: 4045454076993
  • Customs tariff number Sales Organisation Germany: 85369010000
: *
: *
: *
