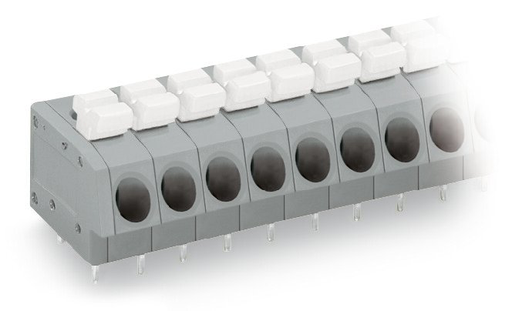

WAGO 804-108

804-108 WAGO 804-108

WAGO 804-108
Part # 804-108
Manufacturer WAGO
GTIN 4044918515122
Condition New
Price: $ 4.09
Qty
6 In stock
Order by 3PM MST (subject to stock availability) same day shipping available!
MOD PCB CONN 8-POS CCS
Got questions? Send us a message or call us at 1-800-335-5111 for additional assistance.
1-Conductor PCB terminal strip 2 solder pins / poles staggered 8 pole

Features

  • PCB terminal strips with push-buttons and Push-in CAGE CLAMP® connection
  • Push-in termination of solid and ferruled, fine-stranded conductors
  • A large conductor entry accommodates conductors with a cross-section up to 12 AWG with an insulation diameter up to 4.2 mm
  • Terminal strips with spacers to increase pin spacing
  • Versions available with custom internal commoning (factory assembly), e.g., commoning ground conductor

Approvals

  • DEKRA Certification B.V., CCA, NTR NL 7781, EN 60947-7-4
  • UL International Germany GmbH, UL, E45171, UL 1977
  • UL International Germany GmbH, UL, E45172, UL 1059
  • UL International Germany GmbH, ENEC 15, ENEC-00096, EN 60998
  • DEKRA Certification B.V., CCA, 71-110710, EN 60947-7-4

Specifications

Notes

  • Variants:: Other pole numbers || Other colors || Mixed-color PCB connector strips || 10 mm pin spacing version with spacers || Direct marking || Versions for Ex i || Other versions (or variants) can be requested from WAGO Sales or configured at https://configurator.wago.com/

Ratings Per Iec/En

  • Ratings per: IEC/EN 60664-1
  • Nominal voltage (III/3): 250 V
  • Rated surge voltage (III/3): 4 kV
  • Rated voltage (III/2): 320 V
  • Rated surge voltage (III/2): 4 kV
  • Nominal voltage (II/2): 630 V
  • Rated surge voltage (II/2): 4 kV
  • Rated current: 24 A
  • Legend (ratings): (III / 2) ≙ Overvoltage category III / Pollution degree 2

Ratings Per Ul

  • Approvals per: UL 1059
  • Rated voltage UL (Use Group B): 300 V
  • Rated current UL (Use Group B): 10 A
  • Rated voltage UL (Use Group D): 300 V
  • Rated current UL (Use Group D): 10 A

Ratings Per Csa

  • Approvals per: CSA
  • Rated voltage CSA (Use Group B): 300 V
  • Rated current CSA (Use Group B): 10 A
  • Rated voltage CSA (Use Group D): 300 V
  • Rated current CSA (Use Group D): 10 A

Connection 1

  • Connection technology: Push-in CAGE CLAMP®
  • Actuation type: Push-button
  • Solid conductor: 0.25 … 2.5 mm² / 20 … 12 AWG
  • Fine-stranded conductor: 0.25 … 2.5 mm² / 22 … 12 AWG
  • Fine-stranded conductor; with insulated ferrule: 0.25 … 1.5 mm²
  • Fine-stranded conductor; with uninsulated ferrule: 0.25 … 2.5 mm²
  • Strip length: 10 … 11 mm / 0.39 … 0.43 inch
  • Conductor connection direction to PCB: 0 °
  • Pole No.: 8

Physical Data

  • Pin spacing: 5 mm / 0.197 inch
  • Width: 41.5 mm / 1.634 inch
  • Height: 18.1 mm / 0.713 inch
  • Height from the surface: 14.5 mm / 0.571 inch
  • Depth: 15 mm / 0.591 inch
  • Solder pin length: 3.6 mm
  • Solder pin dimensions: 0.8 x 0.6 mm
  • Drilled hole diameter with tolerance: 1.1 (+0.1) mm

Pcb Contact

  • PCB Contact: THT
  • Solder pin arrangement: Over the entire terminal strip (staggered)
  • Number of solder pins per potential: 2

Material Data

  • Color: Gray
  • Material group: I
  • Insulation material: Polyamide (PA66)
  • Flammability class per UL94: V0
  • Clamping spring material: Chrome nickel spring steel (CrNi)
  • Contact material: Electrolytic copper (ECu)
  • Contact plating: Tin-plated
  • Fire load: 0.105 MJ
  • Weight: 8.112 g

Environmental Requirements

  • Limit temperature range: -60 … +105 °C

Commercial Data

  • Packaging type: Box
  • Country of origin Sales Organisation Germany: CH
  • GTIN: 4044918515122
  • Customs tariff number Sales Organisation Germany: 85369010000
: *
: *
: *
