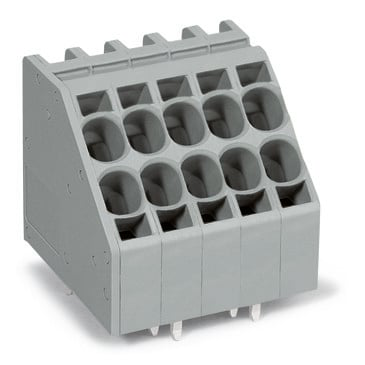

WAGO 746-2308/000-009

746-2308/000-009 WAGO 746-2308/000-009

WAGO 746-2308/000-009
Part # 746-2308/000-009
Condition New
Price: $ 14.19

Please Contact Us for Stock Availability

Qty
Order by 3PM MST (subject to stock availability) same day shipping available!
2-conductor PCB terminal block
Got questions? Send us a message or call us at 1-800-335-5111 for additional assistance.
2-conductor PCB terminal block

Features

  • Two-conductor terminal strips with screwdriver actuation and Push-in CAGE CLAMP® connection
  • Double entries for supply and power distribution
  • Simple, reliable connection via clamping units featuring individual operating slots
  • 600 V UL per UL 1059
  • Simple, push-in termination of solid and ferruled conductors
  • Marker slot for miniature WSB and WMB markers

Approvals

  • Underwriters Laboratories Inc., UL, E45172, UL 1059
  • DEKRA Certification B.V., CCA, NTR NL-7099, EN 60947
  • DEKRA Certification B.V., CSA, 1604421, C22.2 No. 158
  • DEKRA Certification B.V., ENEC, 2160584.17, EN 60947

Specifications

Notes

  • Variants:: Other pole numbers || Other colors || Mixed-color PCB connector strips || Direct marking || Other versions (or variants) can be requested from WAGO Sales or configured at https://configurator.wago.com/

Ratings Per Iec/En

  • Ratings per: IEC/EN 60664-1
  • Nominal voltage (III/3): 800 V
  • Rated surge voltage (III/3): 8 kV
  • Rated voltage (III/2): 1000 V
  • Rated surge voltage (III/2): 8 kV
  • Nominal voltage (II/2): 1000 V
  • Rated surge voltage (II/2): 8 kV
  • Rated current: 50 A
  • Legend (ratings): (III / 2) ≙ Overvoltage category III / Pollution degree 2

Ratings Per Ul

  • Approvals per: UL 1059
  • Rated voltage UL (Use Group B): 600 V
  • Rated current UL (Use Group B): 50 A
  • Rated voltage UL (Use Group C): 600 V
  • Rated current UL (Use Group C): 50 A

Ratings Per Csa

  • Approvals per: CSA
  • Rated voltage CSA (Use Group B): 600 V
  • Rated current CSA (Use Group B): 44 A
  • Rated voltage CSA (Use Group C): 600 V
  • Rated current CSA (Use Group C): 44 A

Connection 1

  • Connection technology: Push-in CAGE CLAMP®
  • Actuation type: Operating tool
  • Solid conductor: 0.5 … 10 mm² / 20 … 8 AWG
  • Fine-stranded conductor: 0.5 … 10 mm² / 20 … 8 AWG
  • Fine-stranded conductor; with insulated ferrule: 0.5 … 6 mm²
  • Fine-stranded conductor; with uninsulated ferrule: 0.5 … 6 mm²
  • Strip length: 13 … 15 mm / 0.51 … 0.59 inch
  • Conductor connection direction to PCB: 45 °
  • Pole No.: 8

Physical Data

  • Pin spacing: 7.5 mm / 0.295 inch
  • Width: 62.7 mm / 2.469 inch
  • Height: 41.3 mm / 1.623 inch
  • Height from the surface: 36.9 mm / 1.453 inch
  • Depth: 37 mm / 1.457 inch
  • Solder pin length: 4.4 mm
  • Solder pin dimensions: 1.6 x 1.2 mm
  • Drilled hole diameter with tolerance: 2.2 (+0.1) mm

Pcb Contact

  • PCB Contact: THT
  • Solder pin arrangement: Over the entire terminal strip (staggered)
  • Number of solder pins per potential: 2

Material Data

  • Color: Light gray
  • Material group: I
  • Insulation material: Polyamide (PA66)
  • Flammability class per UL94: V0
  • Clamping spring material: Chrome nickel spring steel (CrNi)
  • Contact material: Electrolytic copper (ECu)
  • Contact plating: Tin-plated
  • Fire load: 0.993 MJ
  • Weight: 62.247 g

Environmental Requirements

  • Limit temperature range: -60 … +105 °C

Commercial Data

  • Packaging type: Box
  • Country of origin Sales Organisation Germany: PL
  • GTIN: 4050821477631
  • Customs tariff number Sales Organisation Germany: 85369010000
: *
: *
: *
