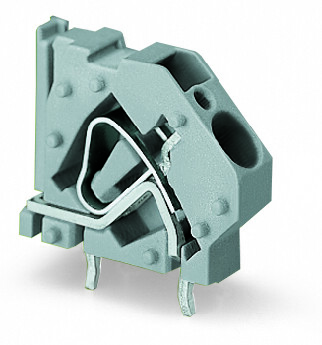

WAGO 745-838

745-838 WAGO 745-838

WAGO 745-838
Part # 745-838
Manufacturer WAGO
GTIN 4044918937276
Condition New
Price: $ 1.06

Please Contact Us for Stock Availability

Qty
Order by 3PM MST (subject to stock availability) same day shipping available!
SINGLE MOD TRM BLK - LT GREEN
Got questions? Send us a message or call us at 1-800-335-5111 for additional assistance.
Modular PCB terminal block 2 solder pins / pole 1 pole

Features

  • Modular terminal blocks with screwdriver-actuated CAGE CLAMP® for custom terminal strip assemblies
  • Versions with Ex approval
  • Common and distribute potentials via comb-style jumper bars
  • Double solder pins for high mechanical stability
  • Integrated testing tap
  • Marker slot for Mini-WSB markers

Approvals

  • Underwriters Laboratories Inc., UR, E45172, UL 1059
  • DEKRA Certification B.V., CCA, 2160584.16, EN 60947
  • DEKRA Certification B.V., CSA, 1604421, C22.2 No. 158
  • DEKRA Certification B.V., CCA, NTR NL-7097, EN 60947

Specifications

Notes

  • Variants:: Versions for Ex e II and Ex i || Other colors || Other versions (or variants) can be requested from WAGO Sales or configured at https://configurator.wago.com/

Ratings Per Iec/En

  • Ratings per: IEC/EN 60664-1
  • Nominal voltage (III/3): 500 V
  • Rated surge voltage (III/3): 6 kV
  • Rated voltage (III/2): 630 V
  • Rated surge voltage (III/2): 6 kV
  • Nominal voltage (II/2): 1000 V
  • Rated surge voltage (II/2): 6 kV
  • Rated current: 41 A
  • Legend (ratings): (III / 2) ≙ Overvoltage category III / Pollution degree 2

Ratings Per Ul

  • Approvals per: UL 1059
  • Rated voltage UL (Use Group B): 300 V
  • Rated current UL (Use Group B): 30 A
  • Rated voltage UL (Use Group C): 150 V
  • Rated current UL (Use Group C): 30 A
  • Rated voltage UL (Use Group D): 300 V
  • Rated current UL (Use Group D): 10 A

Ratings Per Csa

  • Approvals per: CSA
  • Rated voltage CSA (Use Group B): 300 V
  • Rated current CSA (Use Group B): 30 A
  • Rated voltage CSA (Use Group C): 150 V
  • Rated current CSA (Use Group C): 30 A
  • Rated voltage CSA (Use Group D): 300 V
  • Rated current CSA (Use Group D): 10 A

Connection 1

  • Connection technology: CAGE CLAMP®
  • Actuation type: Operating tool
  • Solid conductor: 0.2 … 6 mm² / 24 … 10 AWG
  • Fine-stranded conductor: 0.2 … 6 mm² / 24 … 10 AWG
  • Fine-stranded conductor; with insulated ferrule: 0.25 … 4 mm²
  • Fine-stranded conductor; with uninsulated ferrule: 0.25 … 4 mm²
  • Strip length: 11 … 12 mm / 0.43 … 0.47 inch
  • Conductor connection direction to PCB: 45 °
  • Pole No.: 1

Physical Data

  • Pin spacing: 7.5 mm / 0.295 inch
  • Width: 9 mm / 0.354 inch
  • Height: 27.5 mm / 1.083 inch
  • Height from the surface: 23 mm / 0.906 inch
  • Depth: 29.1 mm / 1.146 inch
  • Solder pin length: 4.5 mm
  • Solder pin dimensions: 1 x 1.4 mm
  • Drilled hole diameter with tolerance: 1.8 (+0.1) mm

Pcb Contact

  • PCB Contact: THT
  • Solder pin arrangement: Within the terminal block (in-line)
  • Number of solder pins per potential: 2

Material Data

  • Color: Light green
  • Material group: I
  • Insulation material: Polyamide (PA66)
  • Flammability class per UL94: V0
  • Clamping spring material: Chrome nickel spring steel (CrNi)
  • Contact material: Electrolytic copper (ECu)
  • Contact plating: Tin-plated
  • Fire load: 0.073 MJ
  • Weight: 4.752 g

Environmental Requirements

  • Limit temperature range: -60 … +105 °C

Commercial Data

  • Packaging type: Box
  • Country of origin Sales Organisation Germany: PL
  • GTIN: 4044918937276
  • Customs tariff number Sales Organisation Germany: 85369010000
: *
: *
: *
