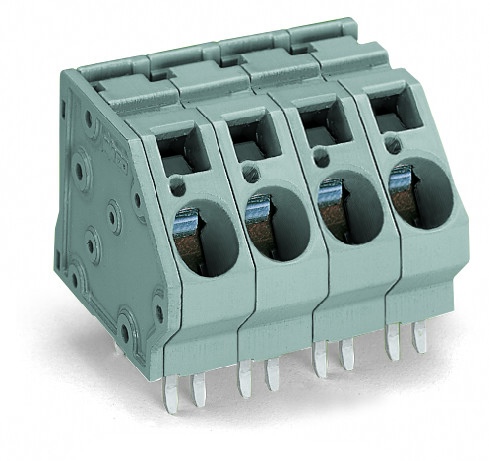

WAGO 745-505/006-000

745-505/006-000 WAGO 745-505/006-000

WAGO 745-505/006-000
Part # 745-505/006-000
Manufacturer WAGO
GTIN 4044918302890
Condition New
Price: $ 7.28
Qty
160 In stock
Order by 3PM MST (subject to stock availability) same day shipping available!
MOD PCB TRM BLK 10MM GRAY 5-POL
Got questions? Send us a message or call us at 1-800-335-5111 for additional assistance.
PCB terminal strip 4 solder pins/pole 5 pole

Features

  • PCB terminal strips with screwdriver-actuated CAGE CLAMP® connection
  • Versions with Ex approval
  • Unrestricted UL approval up to 600 V with 20 mm pin spacing
  • Common and distribute potentials via comb-style jumper bars
  • Four solder pins for high mechanical stability
  • Integrated testing tap
  • Marker slot for Mini-WSB markers

Approvals

  • DEKRA Certification B.V., CCA, NTR NL-7094, EN 60947
  • Underwriters Laboratories Inc., UR, E45172, UL 1059
  • DEKRA Certification B.V., CSA, 1604421, C22.2 No. 158
  • DEKRA Certification B.V., CCA, 2160584.14, EN 60947

Specifications

Notes

  • Variants:: Other pole numbers || Versions for Ex e II and Ex i || Other colors || Mixed-color PCB connector strips || Versions with mounting flanges || Direct marking || Solder pin length: 5 mm || Other versions (or variants) can be requested from WAGO Sales or configured at https://configurator.wago.com/

Ratings Per Iec/En

  • Ratings per: IEC/EN 60664-1
  • Nominal voltage (III/3): 320 V
  • Rated surge voltage (III/3): 4 kV
  • Rated voltage (III/2): 320 V
  • Rated surge voltage (III/2): 4 kV
  • Nominal voltage (II/2): 630 V
  • Rated surge voltage (II/2): 4 kV
  • Rated current: 76 A
  • Legend (ratings): (III / 2) ≙ Overvoltage category III / Pollution degree 2

Ratings Per Ul

  • Approvals per: UL 1059
  • Rated voltage UL (Use Group B): 300 V
  • Rated current UL (Use Group B): 10 A
  • Rated voltage UL (Use Group D): 300 V
  • Rated current UL (Use Group D): 10 A

Ratings Per Csa

  • Approvals per: CSA
  • Rated voltage CSA (Use Group B): 300 V
  • Rated current CSA (Use Group B): 10 A
  • Rated voltage CSA (Use Group D): 300 V
  • Rated current CSA (Use Group D): 10 A

Connection 1

  • Connection technology: CAGE CLAMP®
  • Actuation type: Operating tool
  • Solid conductor: 0.2 … 16 mm² / 24 … 6 AWG
  • Fine-stranded conductor: 0.2 … 16 mm² / 24 … 6 AWG
  • Fine-stranded conductor; with insulated ferrule: 0.25 … 10 mm²
  • Fine-stranded conductor; with uninsulated ferrule: 0.25 … 10 mm²
  • Strip length: 12 … 13 mm / 0.47 … 0.51 inch
  • Conductor connection direction to PCB: 45 °
  • Pole No.: 5

Physical Data

  • Pin spacing: 10 mm / 0.394 inch
  • Width: 51.7 mm / 2.035 inch
  • Height: 33.5 mm / 1.319 inch
  • Height from the surface: 27 mm / 1.063 inch
  • Depth: 33.4 mm / 1.315 inch
  • Solder pin length: 6.5 mm
  • Solder pin dimensions: 1.2 x 1.6 mm
  • Drilled hole diameter with tolerance: 2.2 (+0.1) mm

Pcb Contact

  • PCB Contact: THT
  • Solder pin arrangement: Over the entire terminal strip (in-line)
  • Number of solder pins per potential: 4

Material Data

  • Color: Gray
  • Material group: I
  • Insulation material: Polyamide (PA66)
  • Flammability class per UL94: V0
  • Clamping spring material: Chrome nickel spring steel (CrNi)
  • Contact material: Electrolytic copper (ECu)
  • Contact plating: Tin-plated
  • Fire load: 0.675 MJ
  • Weight: 46.175 g

Environmental Requirements

  • Limit temperature range: -60 … +105 °C

Commercial Data

  • Packaging type: Box
  • Country of origin Sales Organisation Germany: PL
  • GTIN: 4044918302890
  • Customs tariff number Sales Organisation Germany: 85369010000
: *
: *
: *
