WAGO 745-3106

745-3106 WAGO 745-3106

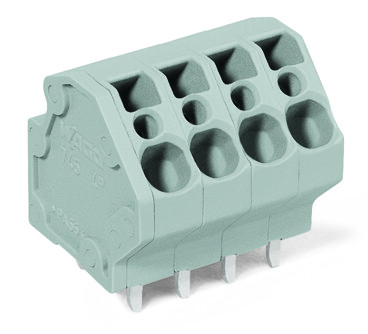

WAGO 745-3106
Part # 745-3106
Manufacturer WAGO
GTIN 4045454153717
Condition New
Price: $ 3.96

Please Contact Us for Stock Availability

Qty
Order by 3PM MST (subject to stock availability) same day shipping available!
PCB TRM STRIP 6-POL 5MM
Got questions? Send us a message or call us at 1-800-335-5111 for additional assistance.
PCB terminal strip 2 solder pins / pole 6 pole

Features

  • PCB terminal strips with screwdriver-actuated CAGE CLAMP® connection
  • Versions with Ex approval
  • Mixed-color PCB terminal strips from factory
  • Space-saving configuration of terminal strips when placed behind each other
  • Custom color combinations
  • Double solder pins for high mechanical stability
  • Integrated testing tap

Approvals

  • DEKRA Certification B.V., CCA, 71-112275, EN 60947
  • DEKRA Certification B.V., CCA, NTR NL-7095, EN 60947
  • Underwriters Laboratories Inc., cURus, E45172, UL 1059

Specifications

Notes

  • Variants:: Other pole numbers || Versions for Ex e II and Ex i || Other colors || Mixed-color PCB connector strips || Direct marking || Other versions (or variants) can be requested from WAGO Sales or configured at https://configurator.wago.com/

Ratings Per Iec/En

  • Ratings per: IEC/EN 60664-1
  • Nominal voltage (III/3): 320 V
  • Rated surge voltage (III/3): 4 kV
  • Rated voltage (III/2): 320 V
  • Rated surge voltage (III/2): 4 kV
  • Nominal voltage (II/2): 630 V
  • Rated surge voltage (II/2): 4 kV
  • Rated current: 32 A
  • Legend (ratings): (III / 2) ≙ Overvoltage category III / Pollution degree 2

Ratings Per Ul

  • Approvals per: UL 1059
  • Rated voltage UL (Use Group B): 300 V
  • Rated current UL (Use Group B): 20 A
  • Rated voltage UL (Use Group D): 300 V
  • Rated current UL (Use Group D): 10 A

Ratings Per Csa

  • Approvals per: CSA
  • Rated voltage CSA (Use Group B): 300 V
  • Rated current CSA (Use Group B): 20 A
  • Rated voltage CSA (Use Group D): 300 V
  • Rated current CSA (Use Group D): 10 A

Connection 1

  • Connection technology: CAGE CLAMP®
  • Actuation type: Operating tool
  • Solid conductor: 0.08 … 4 mm² / 28 … 12 AWG
  • Fine-stranded conductor: 0.08 … 4 mm² / 28 … 12 AWG
  • Fine-stranded conductor; with insulated ferrule: 0.25 … 2.5 mm²
  • Fine-stranded conductor; with uninsulated ferrule: 0.25 … 2.5 mm²
  • Strip length: 8 … 9 mm / 0.31 … 0.35 inch
  • Conductor connection direction to PCB: 45 °
  • Pole No.: 6

Physical Data

  • Pin spacing: 5 mm / 0.197 inch
  • Width: 31.5 mm / 1.24 inch
  • Height: 23 mm / 0.906 inch
  • Height from the surface: 19 mm / 0.748 inch
  • Depth: 19.4 mm / 0.764 inch
  • Solder pin length: 4 mm
  • Solder pin dimensions: 0.8 x 1.2 mm
  • Drilled hole diameter with tolerance: 1.5 (+0.1) mm

Pcb Contact

  • PCB Contact: THT
  • Solder pin arrangement: Over the entire terminal strip (in-line)
  • Number of solder pins per potential: 2

Material Data

  • Color: Gray
  • Material group: I
  • Insulation material: Polyamide (PA66)
  • Flammability class per UL94: V0
  • Clamping spring material: Chrome nickel spring steel (CrNi)
  • Contact material: Electrolytic copper (ECu)
  • Contact plating: Tin-plated
  • Fire load: 0.166 MJ
  • Weight: 10.932 g

Environmental Requirements

  • Limit temperature range: -60 … +105 °C

Commercial Data

  • Packaging type: Box
  • Country of origin Sales Organisation Germany: PL
  • GTIN: 4045454153717
  • Customs tariff number Sales Organisation Germany: 85369010000
: *
: *
: *
